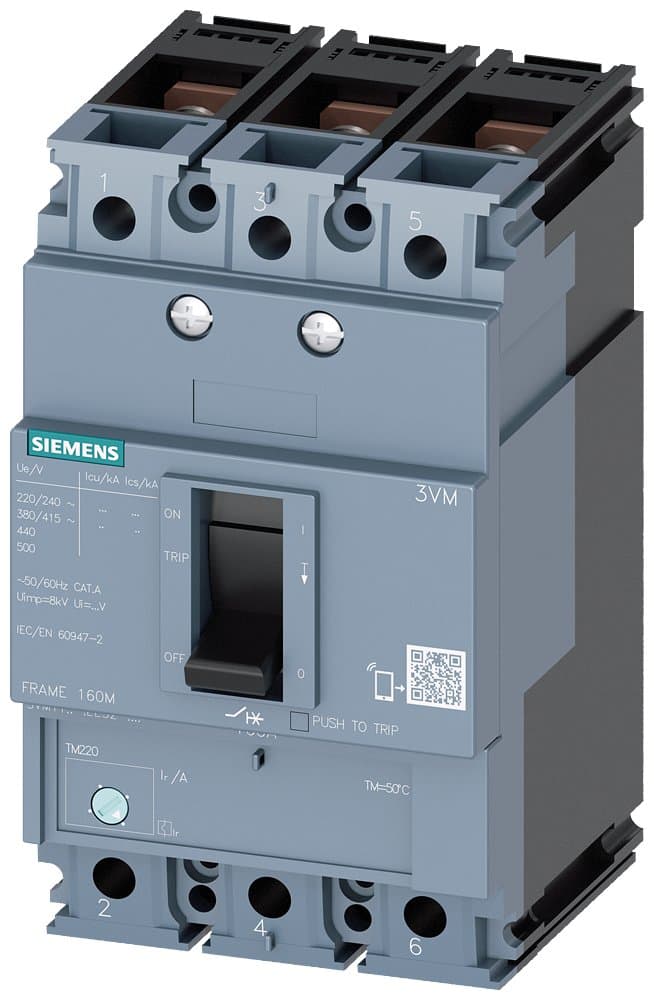

3VM1132-4EE32-0AA0
Product ID:226228
Updated: 2026/4/3
Key Features
- 1Utilize a compact design with 70 mm depth for space-saving panels. 2、Achieve high breaking capacities up to 36 kA at 415 V for robust protection. 3、Integrate modular internal accessories easily for diverse functions. 4、Apply to AC/DC systems with no derating up to +50 °C. 5、Access a universal accessory platform across all sizes for versatile installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1S160 R32 TM220 F/3P; Size 160; Rated Current 32A; Interrupting S:36kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220 [L adjustable, I fixed] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 32 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1132-4EE32-0AA0 |
Specifications may be subject to change without notice
