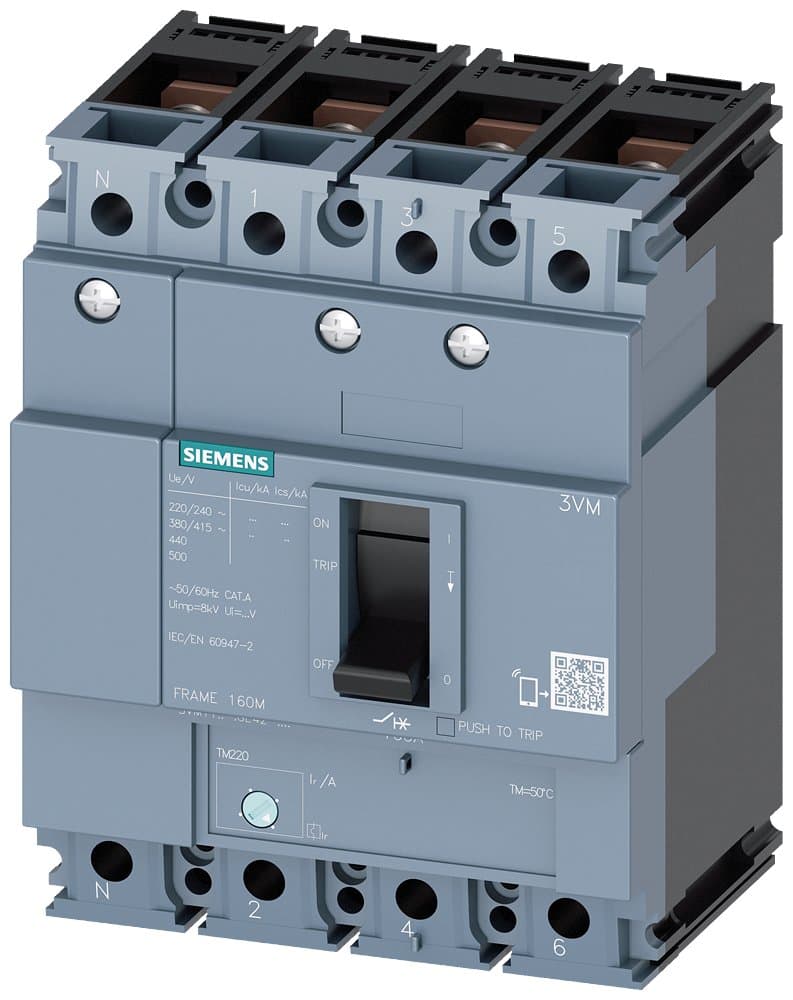

3VM1150-5GE42-0AA0
Product ID:99011
Updated: 2026/7/6
Key Features
- 1Maximize protection with a high breaking capacity of 55 kA at 415V.
- 2Ensure reliable operation using thermal-magnetic trip units for precise tripping.
- 3Save valuable panel space with a compact and modular design.
- 4Deploy versatilely in AC/DC applications, including 400 Hz systems.
- 5Simplify installation with screw flat connectors and modular accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1M160 R50 TM220N F/4P; Size 160; Rated Current 50A; Interrupting Rating M:55kA; Trip Unit TM220N; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220N [L adjustable, I fixed, 100% N] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 50 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1150-5GE42-0AA0 |
Specifications may be subject to change without notice
