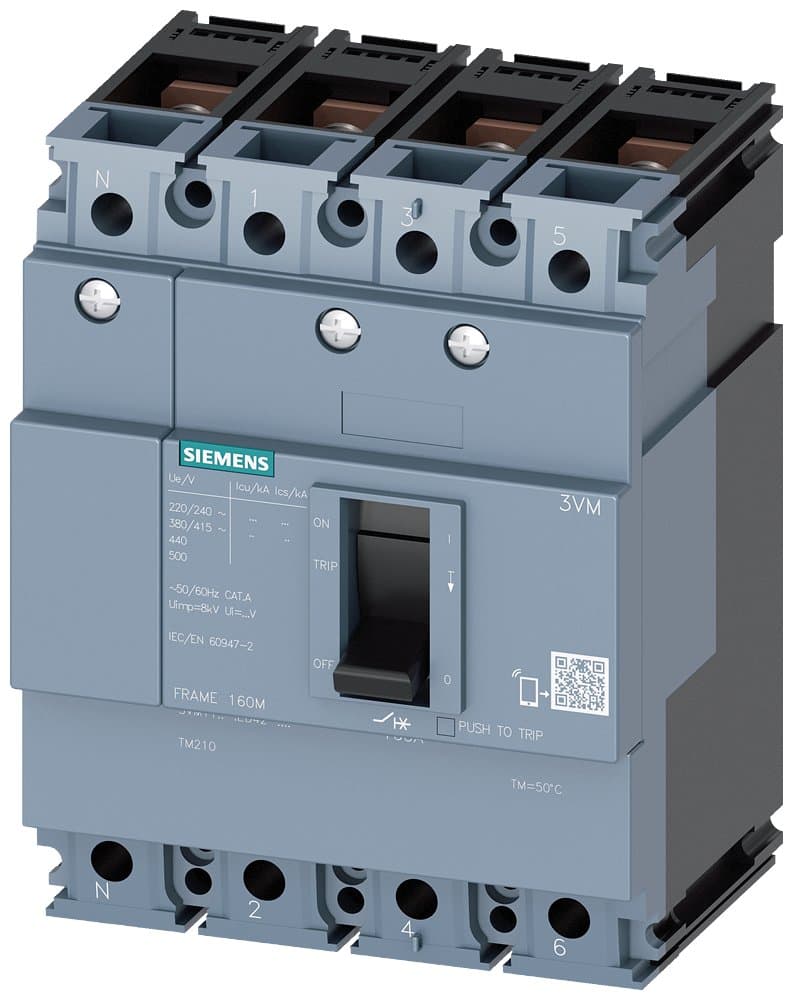

3VM1163-3ED42-0AA0
Product ID:101015
Updated: 2026/4/3
Key Features
- 1Provide reliable overload and short-circuit protection with thermal-magnetic trip units. 2、Utilize a modular design with standardized accessories for quick installation. 3、Suit versatile AC/DC applications with currents up to 630 A. 4、Save space with compact dimensions ideal for plant areas. 5、Ensure compliance with IEC/EN standards for severe operating conditions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 18 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1N160 R63 TM210 F/4P; Size 160; Rated Current 63A; Interrupting Rating N:25kA; Trip Unit TM210; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM210 [LI fixed, line protection] |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 25 | Interrupting Rating: | N:25kA |
| Rated Current In(A): | 63 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1163-3ED42-0AA0 |
Specifications may be subject to change without notice
