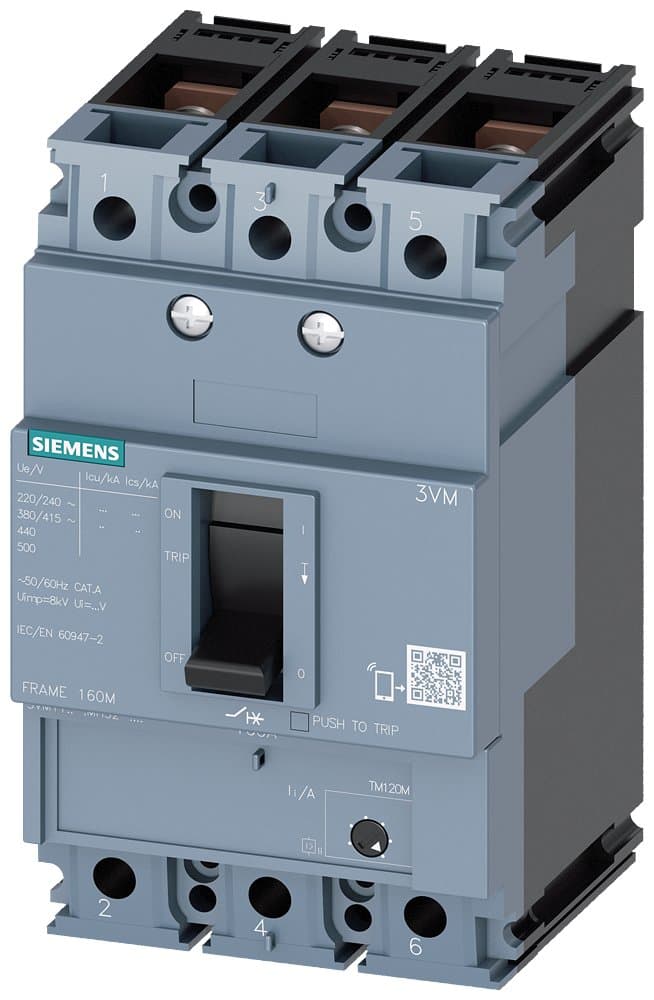

3VM1180-5MH32-0AA0
Product ID:108217
Updated: 2026/4/5
Key Features
- 1Ensure reliable short-circuit protection with 55 kA at 415 V. 2、Enhance starter safety using integrated TM120M protection. 3、Save panel space with a compact and efficient design. 4、Apply it for line protection and starter combinations. 5、Rely on durable construction for long-term performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Int interrupting Capacity Ics(kA): @400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1M160 R80 TM120M F/3P; Size 160; Rated Current 80A; Interrupting Rating M: 55kA; Trip Unit TM120M; |
| Mounting Method: | F: Fixed | Trip Unit: (If required not in the list, reset and select trip unit first) | TM120M [Single Magnetic (I adjustable)] |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 55 | Interrupting Rating: | M: 55kA |
| Rated Current In(A): | 80 | Specifications: | 160 [8-160A] |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1180-5MH32-0AA0 |
Specifications may be subject to change without notice
