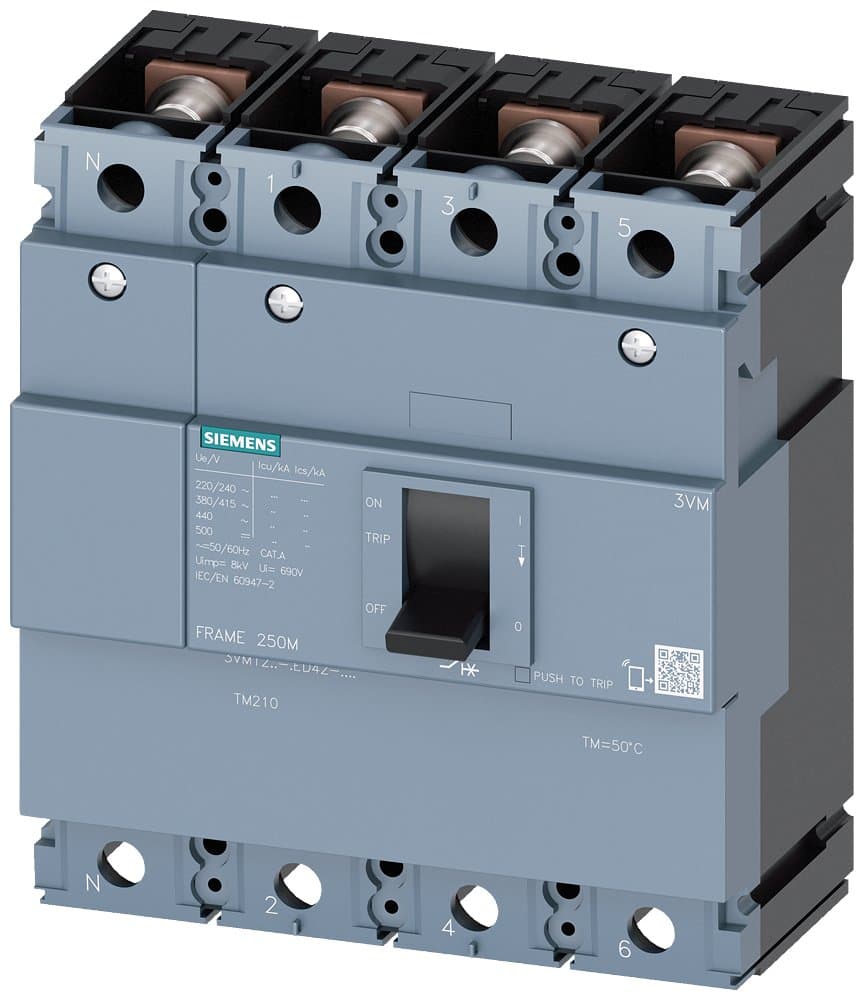

3VM1220-4ED42-0AA0
Product ID:221737
Updated: 2026/4/4
Key Features
- 1Ensure reliable short-circuit protection with 36kA breaking capacity at 415V. 2、Provide comprehensive line safety using TM210 and FTFM system protection. 3、Save valuable panel space with a compact 70mm mounting depth design. 4、Manage continuous currents effectively with up to 200A overload protection. 5、Simplify installation using modular and easy-to-fit internal accessories.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1S250 R200 TM210 F/4P; Size 250; Rated Current 200A; Interrupting Rating S:36kA; Trip Unit TM210; |
| Mounting Method: | F: Fixed Installation | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210【LI fixed, Line Protection】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1220-4ED42-0AA0 |
Specifications may be subject to change without notice
