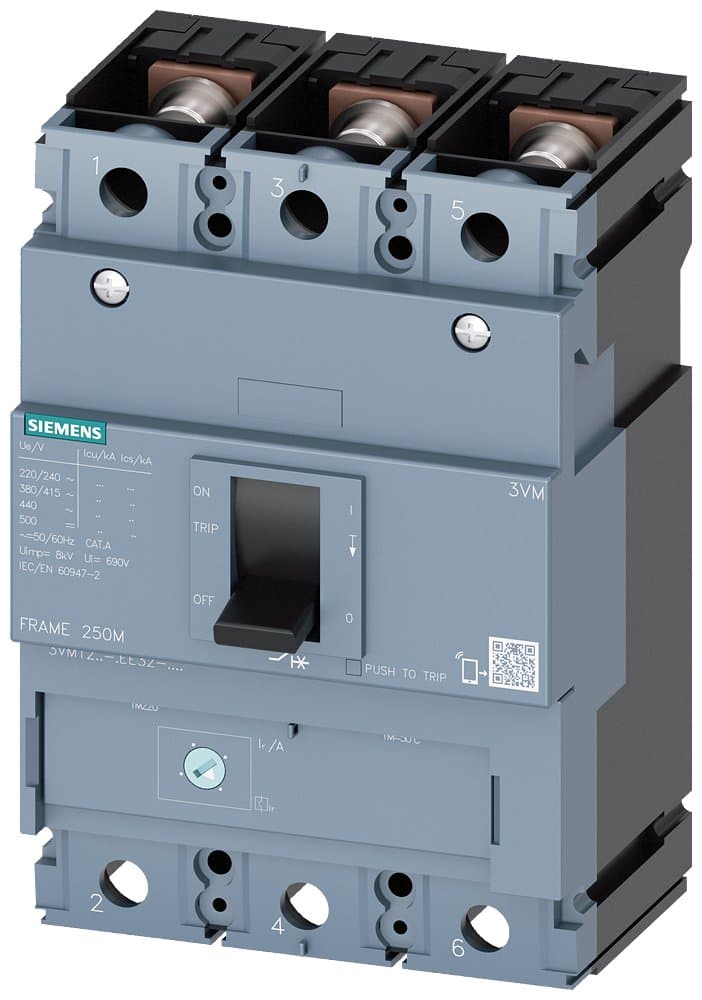

3VM1220-4EE32-0AA0
Product ID:119369
Updated: 2026/4/8
Key Features
- 1Achieve robust protection with a high 36kA breaking capacity. 2、Ensure international compliance with IEC 60947-2 standards. 3、Operate reliably in demanding environments up to 55°C. 4、Enhance safety with integrated ground and neutral protection features. 5、Reduce long-term costs through durable industrial-grade construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1S250 R200 TM220 F/3P; Size 250; Rated Current 200A; Interrupting S:36kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1220-4EE32-0AA0 |
Specifications may be subject to change without notice
