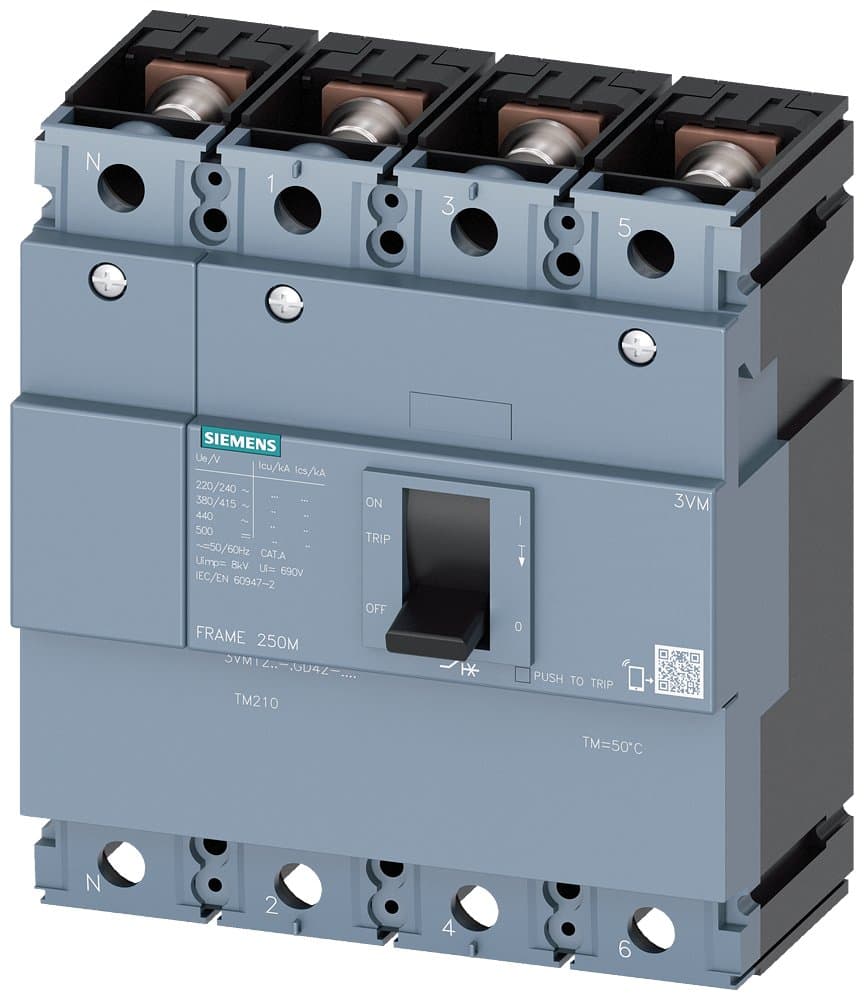

3VM1220-4GD42-0AA0
Product ID:104275
Updated: 2026/7/3
Key Features
- 1Protect personnel and assets with advanced thermal-magnetic trip units.
- 2Save space using a compact design with 70mm mounting depth.
- 3Cut installation time and costs with modular accessories.
- 4Select versatile 3 or 4-pole versions from 16A to 630A.
- 5Ensure compliance with IEC/EN 60947 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA): @400V or 415V | 27 | Rated Voltage(V) | 415 |
| Number of Poles | 4P | Description | 3VM1S250 R200 TM210N F/4P; Size 250; Rated Current 200A; Interrupting S:36kA; Trip Unit TM210N; |
| Mounting Method | F: Fixed Installation | Trip Unit (If not listed, click reset and select the trip unit first) | TM210N【LI fixed, with N-phase protection】 |
| Rated Ultimate Breaking Capacity Icu(kA): @400V or 415V | 36 | Interrupting Rating | S:36kA |
| Rated Current In(A) | 200 | Specifications | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1220-4GD42-0AA0 |
Specifications may be subject to change without notice
