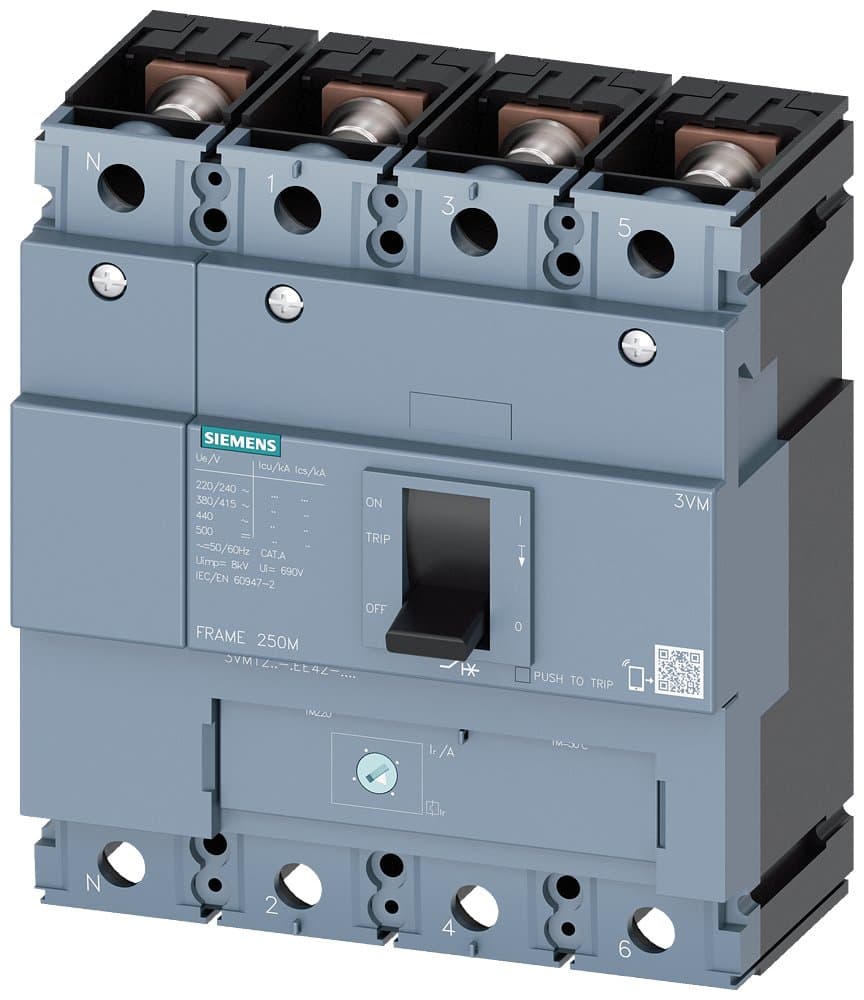

3VM1220-5EE42-0AA0
Product ID:226617
Updated: 2026/4/3
Key Features
- 1Achieve robust short-circuit protection with up to 55 kA breaking capacity. 2、Ensure comprehensive line safety using advanced TM220 and ATFM technology. 3、Save panel space with a compact design for versatile mounting positions. 4、Simplify setup with modular internal accessories for quick installation. 5、Integrate seamlessly thanks to wide compatibility with various systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1M250 R200 TM220 F/4P; Size 250; Rated Current 200A; Interrupting Rating M:55kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 200 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1220-5EE42-0AA0 |
Specifications may be subject to change without notice
