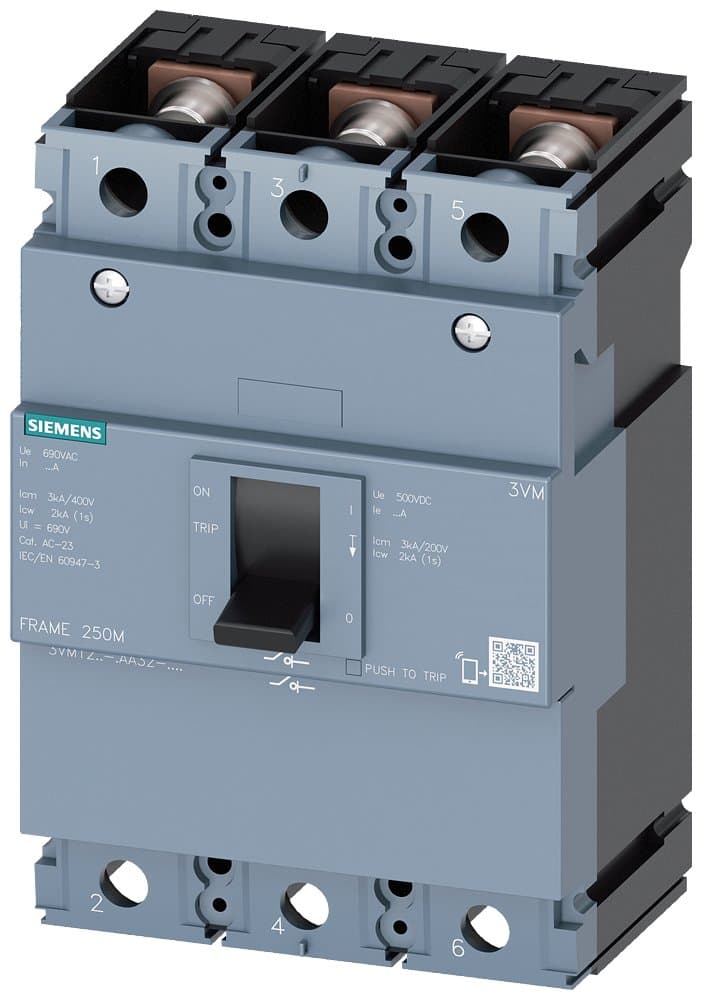

3VM1225-1AA32-0AA0
Product ID:113375
Updated: 2026/7/4
Key Features
- 1Install easily with a compact design.
- 2Achieve high breaking capacity up to 55 kA.
- 3Fit modular internal accessories quickly.
- 4Protect lines with reliable thermal-magnetic trips.
- 5Meet IEC standards for safety and efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Voltage(V): | 415 | Number of Poles: | 3P |
| Description | 3VM1B250 R250 SD100 F/3P; Size 250; Rated Current 250A; Breaking B: 16kA; Trip Unit SD100; | Mounting Method: | F: Fixed Type |
| Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1225-1AA32-0AA0 |
Specifications may be subject to change without notice
