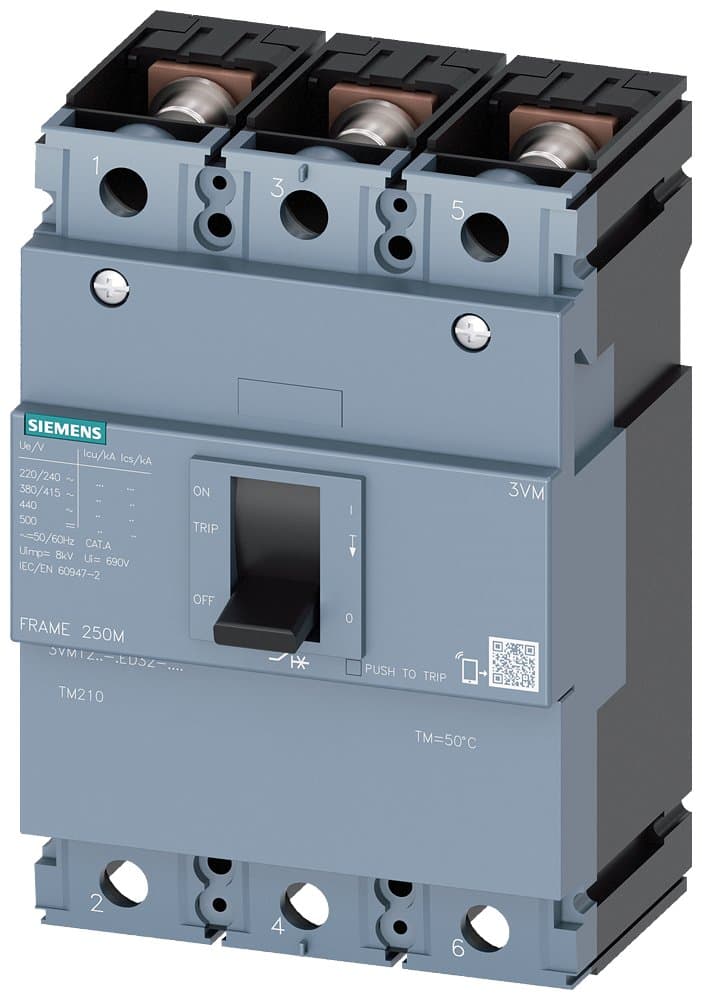

3VM1225-4ED32-0AA0
Product ID:121384
Updated: 2026/4/8
Key Features
- 1Achieve reliable protection with a high breaking capacity of 36kA at 415V. 2、Utilize the IEC frame 250 and 3-pole configuration for comprehensive line safety. 3、Benefit from fixed 250A overload and 10xIn short-circuit protection. 4、Enhance system safety with integrated TM210 and FTFM protection features. 5、Simplify integration through compatibility with M-CAD and E-CAD systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1S250 R250 TM210 F/3P; Size 250; Rated Current 250A; Interrupting S:36kA; Trip Unit TM210; |
| Mounting Method: | F: Fixed | Trip Unit: (If required is not in the list, click reset, then select the trip unit) | TM210【LI fixed, line protection】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 250 | Specifications: | 250【160-250A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3VM1225-4ED32-0AA0 |
Specifications may be subject to change without notice
