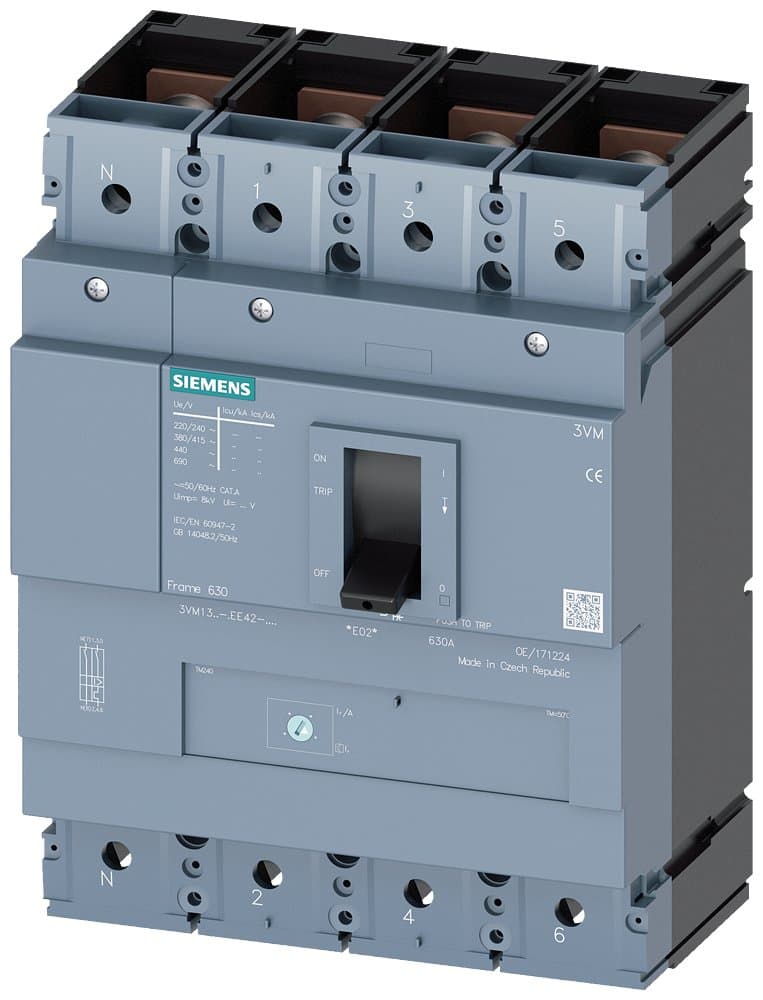

3VM1340-4EE42-0AA0
Product ID:205091
Updated: 2026/4/7
Key Features
- 1Ensure reliable protection with a high breaking capacity of 36kA at 415V. 2、Simplify installation using the versatile modular design and diverse accessories. 3、Achieve comprehensive line protection with integrated TM220 and ATFM systems. 4、Save panel space with a compact design featuring a 70mm mounting depth. 5、Meet safety standards including IEC/EN 60947-1 and IEC/EN 60947-2.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1S400 R400 TM220 F/4P; Size 400; Rated Current 400A; Interrupting S:36kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VM1340-4EE42-0AA0 |
Specifications may be subject to change without notice
