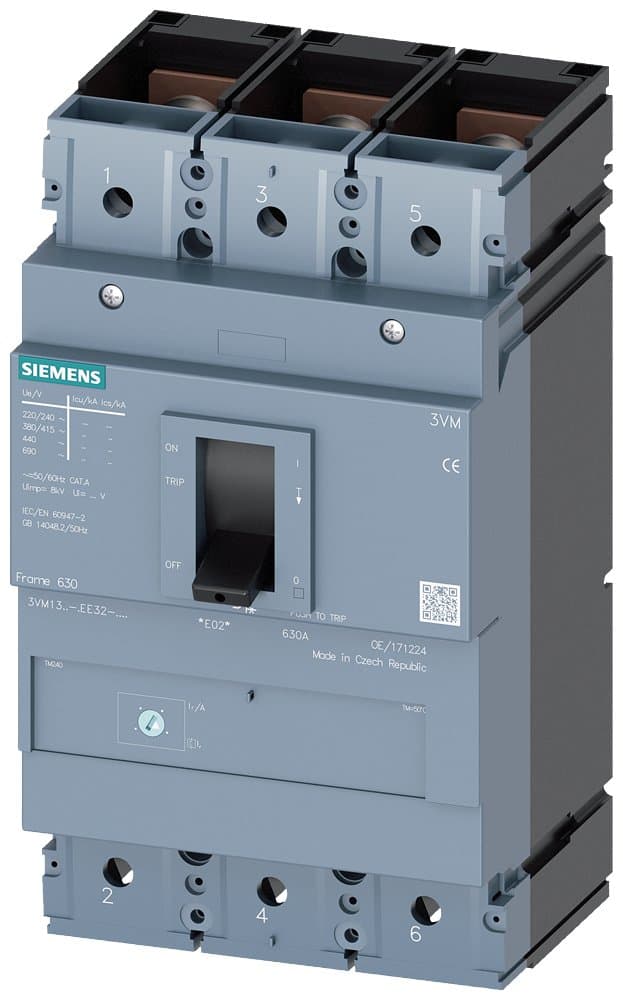

3VM1340-5EE32-0AA0
Product ID:99824
Updated: 2026/4/3
Key Features
- 1Ensure reliable power interruption with a high 55kA breaking capacity at 415V. 2、Enhance system safety using advanced TM220 and ATFM line protection technologies. 3、Monitor and control loads continuously with overload protection up to 400A. 4、Respond immediately to faults with short-circuit protection from 280A to 400A. 5、Simplify installation and integration via a compact IEC frame 400 design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1M400 R400 TM220 F/3P; Size 400; Rated Current 400A; Interrupting M:55kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, click reset, select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 400 | Specifications: | 400【250-400A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VM1340-5EE32-0AA0 |
Specifications may be subject to change without notice
