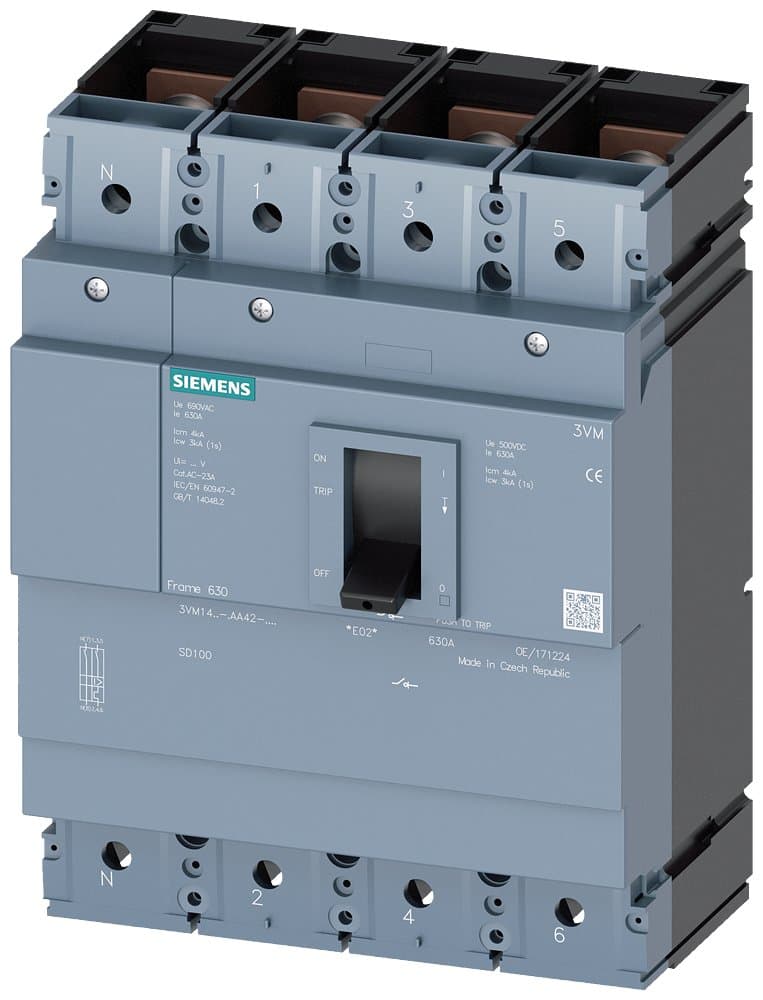

3VM1450-1AA42-0AA0
Product ID:117309
Updated: 2026/7/4
Key Features
- 1Ensure reliable line protection against overloads and short circuits.
- 2Utilize thermal-magnetic trip units for cost-efficient installations.
- 3Access a wide range of modular internal accessories.
- 4Save space with a compact 70mm mounting depth.
- 5Achieve universal compatibility across AC/DC networks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Voltage(V): | 415 | Number of Poles: | 4P |
| Description | 3VM1B630 R500 SD100 F/4P; Size 630; Rated Current 500A; Breaking B: 16kA; Trip Unit SD100; | Mounting Method: | F: Fixed |
| Trip Unit: (If required is not in the list, reset and select trip unit first) | SD100【Isolator Switch】 | Breaking Rating: | (Isolation) |
| Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VM1450-1AA42-0AA0 |
Specifications may be subject to change without notice
