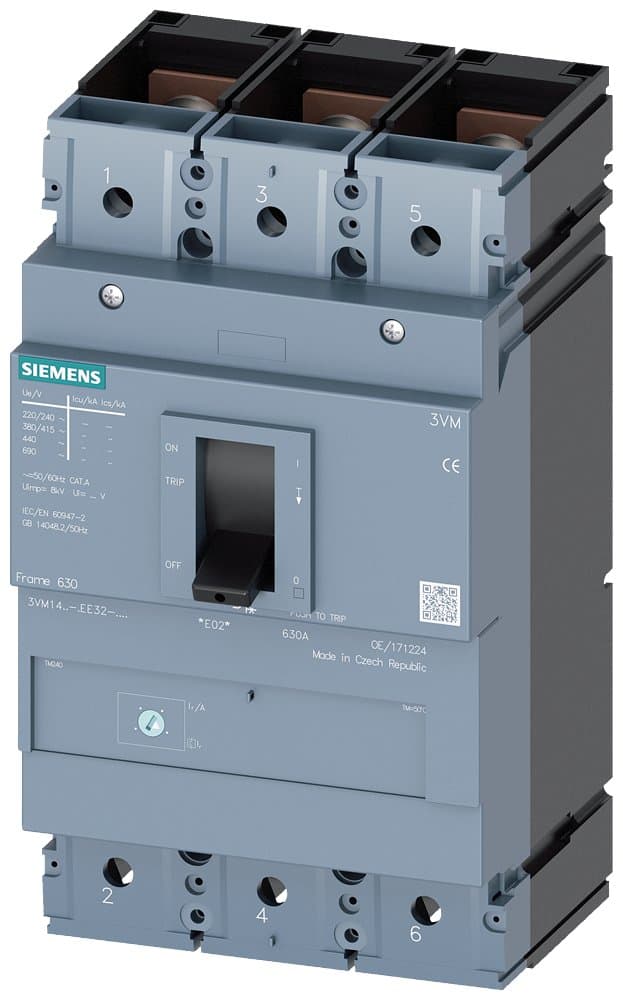

3VM1450-4EE32-0AA0
Product ID:226105
Updated: 2026/4/3
Key Features
- 1Achieve high breaking capacity of 36kA at 415V for robust protection. 2、Utilize IEC frame 630 with class N interrupting rating for reliable performance. 3、Implement comprehensive 3-pole design for complete line protection. 4、Integrate overload protection adjustable up to 500A for system safety. 5、Ensure compatibility with Siemens TM220 and ATFM accessory systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 27 | Rated Voltage(V): | 415 |
| Number of Poles: | 3P | Description | 3VM1S630 R500 TM220 F/3P; Size 630; Rated Current 500A; Interrupting S:36kA; Trip Unit TM220; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220【L adjustable, I fixed】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 36 | Interrupting Rating: | S:36kA |
| Rated Current In(A): | 500 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VM1450-4EE32-0AA0 |
Specifications may be subject to change without notice
