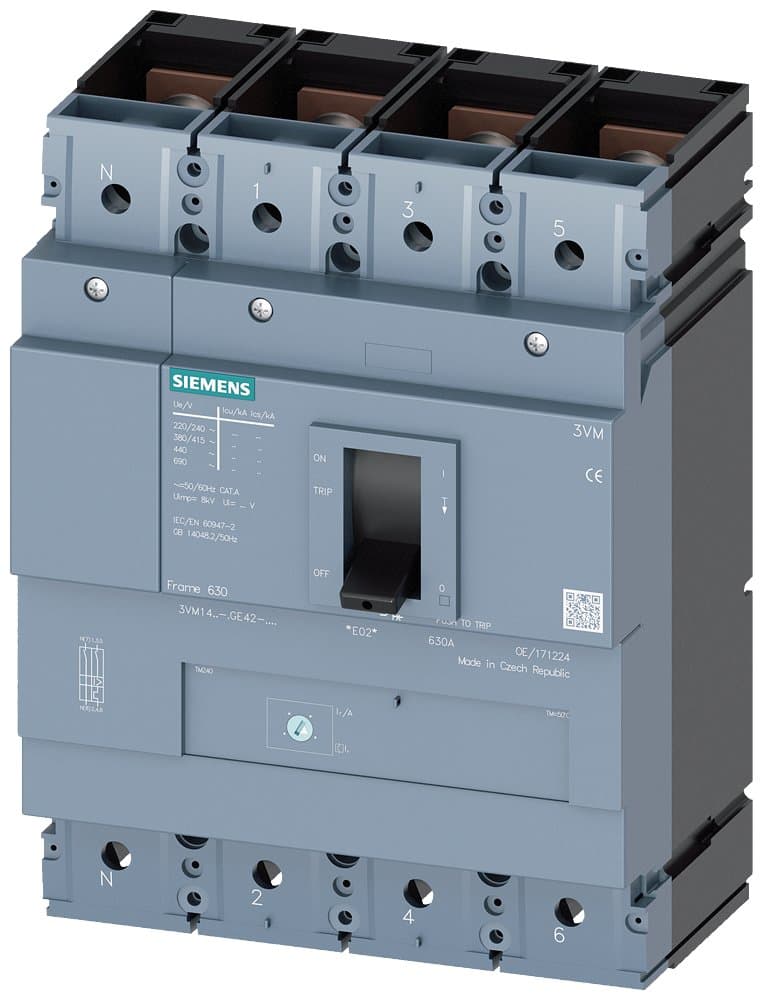

3VM1463-5GE42-0AA0
Product ID:128463
Updated: 2026/7/8
Key Features
- 1Protect electrical lines with a high breaking capacity of 55kA at 415V.
- 2Ensure safe operation via overload protection up to 441A.
- 3Handle high currents with a rated operational current of 630A.
- 4Save space using a compact 248x184x110mm design.
- 5Meet IEC 60947 standards for switching and EMC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated Service Breaking Capacity Ics(kA):@400V or 415V | 41 | Rated Voltage(V): | 415 |
| Number of Poles: | 4P | Description | 3VM1M630 R630 TM220N F/4P; Size 630; Rated Current 630A; Interrupting M:55kA; Trip Unit TM220N; |
| Mounting Method: | F: Fixed Type | Trip Unit: (If required is not in the list, reset and select trip unit first) | TM220N【L adjustable, I fixed, 100%N】 |
| Rated Ultimate Breaking Capacity Icu(kA):@400V or 415V | 55 | Interrupting Rating: | M:55kA |
| Rated Current In(A): | 630 | Specifications: | 630【400-630A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 3VM1463-5GE42-0AA0 |
Specifications may be subject to change without notice
