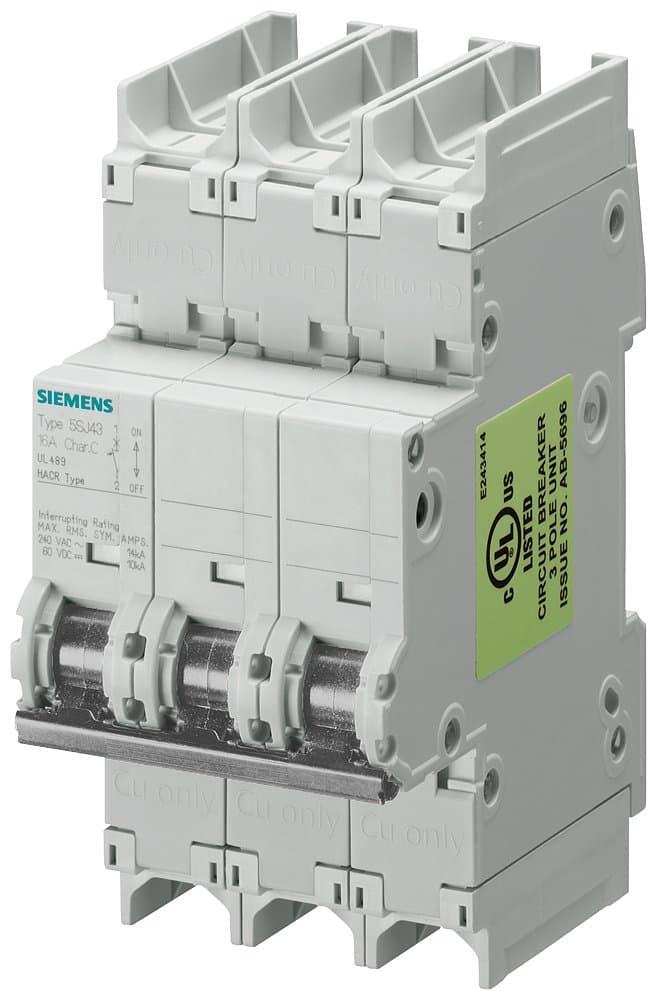

5SJ4311-7HG41
Product ID:101751
Updated: 2026/4/3
Key Features
- 1Install easily with compact 110x54x70 mm dimensions. 2、Ensure reliable protection using a 14kA high interruption rating. 3、Benefit from advanced thermal/magnetic trip mechanism. 4、Mount conveniently on standard 35 mm DIN rails. 5、Connect versatilely with 14 to 4 AWG copper conductors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Installation Module | 3 | Description | 5SJ4 3P C5, 240V AC 10KA; Rated current 5A; Breaking capacity 10kA; Trip unit C |
| Others | 240VAC | Breaking Capacity Icn(kA) per IEC60898 Standard | 10 |
| Number of Poles | 3P | Trip Unit | C【C characteristic curve】 |
| Rated Current In(A) | 5 | Specifications | 5SJ4-HG【0.6-63A】 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 5SJ4311-7HG41 |
Specifications may be subject to change without notice
