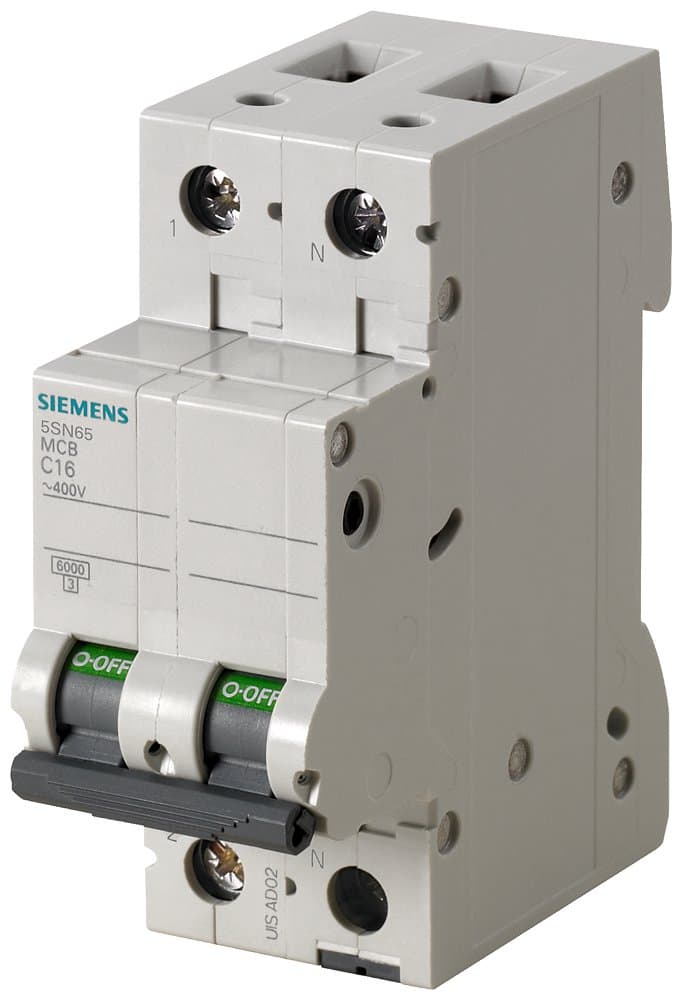

5SN6513-7CN
Product ID:98742
Updated: 2026/7/2
Key Features
- 1Ensure reliable protection with a 6 kA interrupt rating.
- 2Achieve easy installation via quick DIN rail mounting.
- 3Save space with a compact 90x36x76 mm design.
- 4Benefit from consistent thermal/magnetic trip operation.
- 5Gain IP20 protection against dust and solid objects.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Installation Module | 2 | Specification | 5SN6【6-63A】 |
| Number of Poles | 1P+N | Trip Unit | C【C characteristic curve】 |
| Breaking Capacity Icn(kA) per IEC60898 Standard | 6 | Rated Current In(A) | 13 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 5SN6513-7CN |
Specifications may be subject to change without notice
