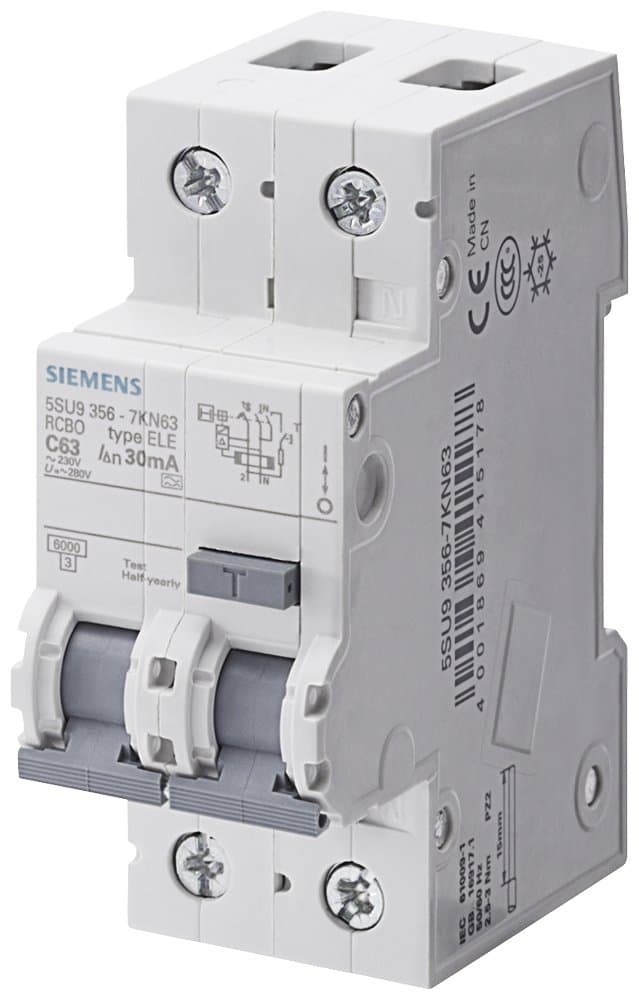

5SU9356-7KN63
Product ID:226767
Updated: 2026/4/3
Key Features
- 1Safeguard circuits with a high 6 kA short-circuit breaking capacity. 2、Ensure comprehensive safety with integrated 280V overvoltage self-protection. 3、Save space using the compact design ideal for distribution boards. 4、Enhance operational efficiency by concurrently switching the neutral conductor. 5、Minimize false triggers with the anti-nuisance tripping version.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 5SU9_A_0.03 1P+N C63 6KA; Rated Current 63A; Breaking Capacity 6kA; Trip Unit C; 1P+N; Residual Current 30mA; A; Electronic | Testing Method: (ELE: Electronic, ELM: Electromagnetic) | Electronic |
| Leakage Current Type: | A | Residual Current: | 30mA |
| Breaking Capacity Icn(kA): Standard IEC60898 | 6 | Product Type: | Residual Current Circuit Breaker with Overcurrent Protection |
| Other: | With overvoltage protection | Trip Unit: | C【C characteristic curve】 |
| Number of Poles: | 1P+N | In(A): | 63 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 5SU9356-7KN63 |
Specifications may be subject to change without notice
