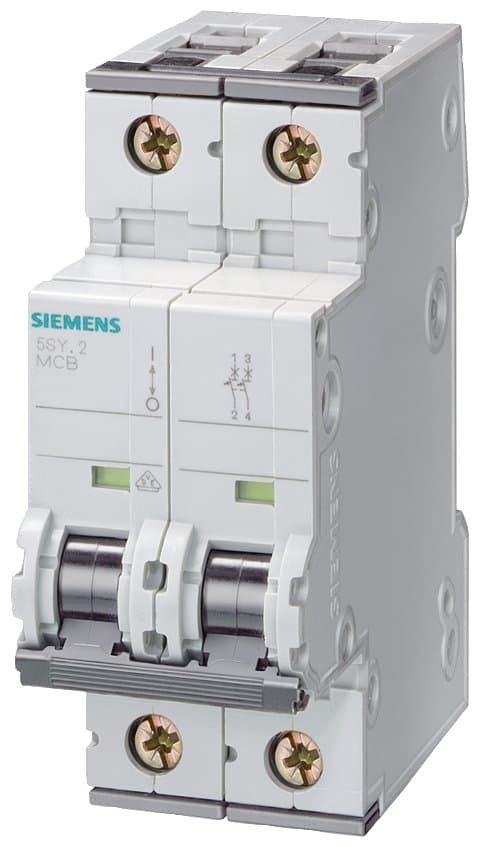

5SY4550-8CC
Product ID:227369
Updated: 2026/4/3
Key Features
- 1Ensure reliable protection with a 10kA breaking capacity against short circuits. 2、Extend product life using durable, halogen-free and silicon-free materials. 3、Accelerate installation with a quick-assembly DIN rail mounting system. 4、Protect diverse applications in industrial and residential construction sectors. 5、Enhance safety with integrated touch protection and automatic cut-out features.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Installation Module | 2 | Specification | 5SY4【0.3-80A】 |
| Number of Poles | 1P+N | Trip Unit | D【D characteristic curve】 |
| Breaking Capacity Icn(kA) per IEC60898 Standard | 10 | Rated Current In(A) | 50 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 5SY4550-8CC |
Specifications may be subject to change without notice
