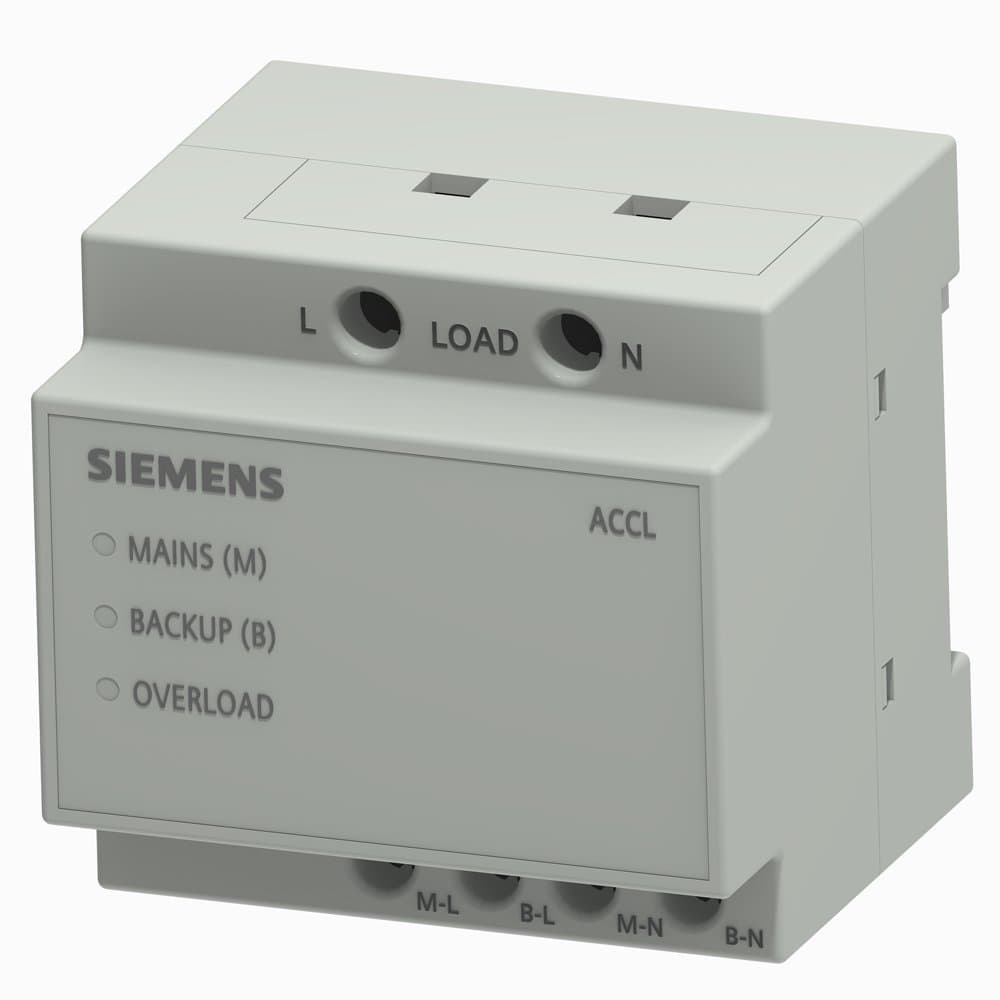

5TR1324-8CC16
Product ID:102780
Updated: 2026/4/3
Key Features
- 1Ensure compliance with the international IEC 60947-6-1 standard. 2、Achieve high reliability and safety with ATSE Class CB 6KA rating. 3、Utilize the versatile 16A 4-pole configuration for various applications. 4、Benefit from robust construction designed for long-lasting performance. 5、Simplify integration into diverse systems with a modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 5TR1 CB-16A-4P6D; CB Class; Rated Current 16A; 4P 6kA D curve with 5SJ6 miniature circuit breaker | Withstand Voltage (kV) | 4 |
| Application Type | AC-33B [Mixed resistive and inductive loads including moderate overload] | System Voltage | 230/400VAC |
| Control Voltage | 230VAC | Trip Unit | D [D characteristic curve] |
| Breaking Capacity (kA) | 6 | Number of Poles | 4 |
| In(A) | 16 | Control Type | Basic Type |
| Type | CB Class | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 5TR1324-8CC16 |
Specifications may be subject to change without notice
