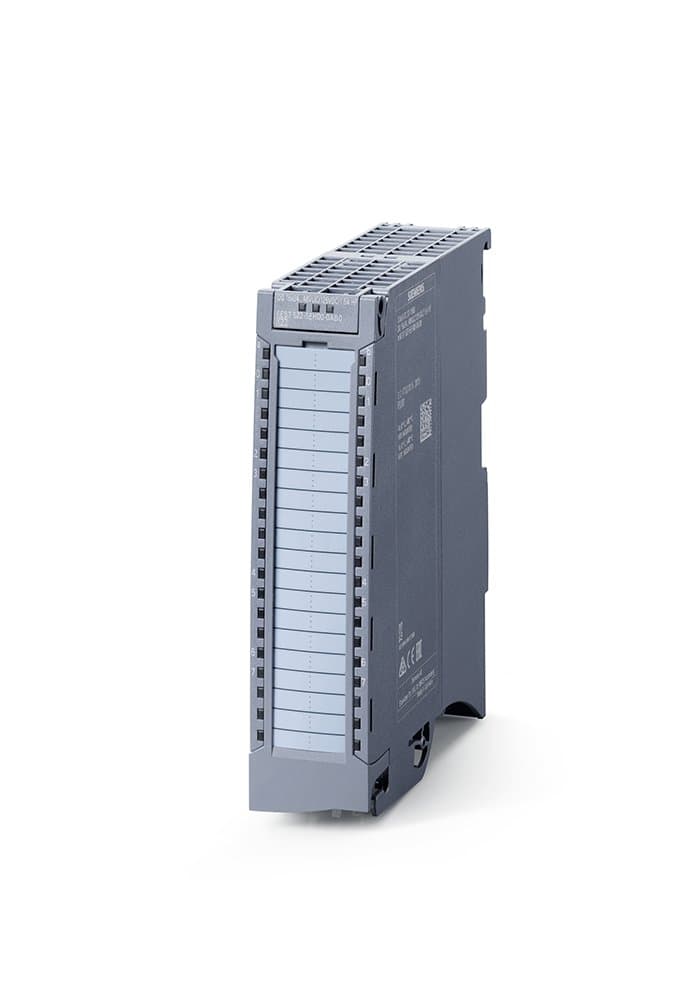

6AG2522-5EH00-4AB0
Product ID:225016
Updated: 2026/4/3
Key Features
- 1Apply conformal coating for high reliability in harsh environments. 2、Operate with DC 24-125V and AC 24-48V for versatile power. 3、Provide 2W from backplane bus with 3.8W typical loss. 4、Equip diagnostic LEDs for RUN, ERROR, and channel status. 5、Meet EN 50121-3-2, EN 50121-4, and EN 50155 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Packaging Quantity | 1 | Quantity Unit | 1 Piece |
| Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
| Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
| Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
| Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
| Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
