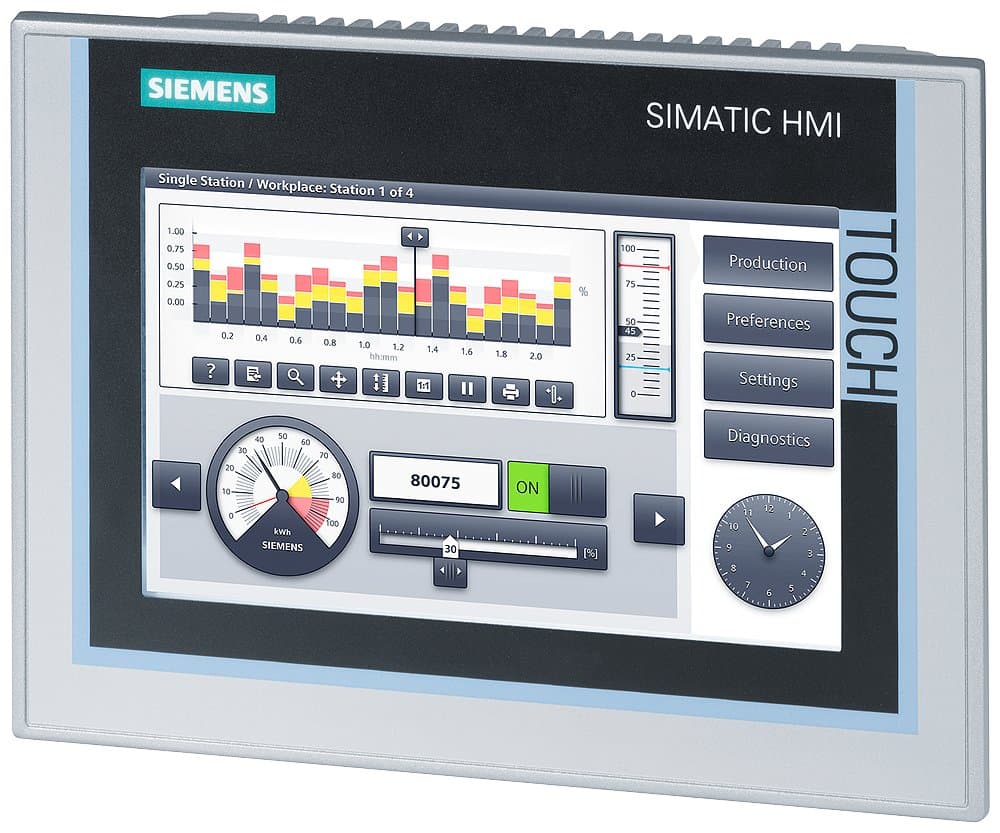

6AV2124-0GC01-0AX0
Product ID:188792
Updated: 2026/4/3
Key Features
- 1Operate via a 7-inch widescreen TFT display with 16 million colors. 2、Integrate seamlessly using PROFINET and EtherNet/IP protocols. 3、Configure with 12 MB memory and expand recipe memory to 2 MB. 4、Power reliably with 24 V DC within a 19.2-28.8 V range. 5、Ensure durability with a robust aluminum housing design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimensions | 16,777,216 | Color Quantity/Gray Scale | 24V |
| Operating Voltage | Yes | User Script Support | VB |
| Internal Variables | 2048 | Pattern Type | Bar Graph/Curve f(t),f(x) |
| Communication Interface | Serial/MPI/PROFIBUS DP/PROFINET*2 | Number of USB Interfaces | 2 |
| Memory Card Slot | MMC/SD | System Memory | 12MB |
| Operation Method | Touch | Resolution | 800*480 |
| Display Size (inches) | 7" | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | 9N9999 |
| AL | N | Model Number | 6AV2124-0GC01-0AX0 |
Specifications may be subject to change without notice
