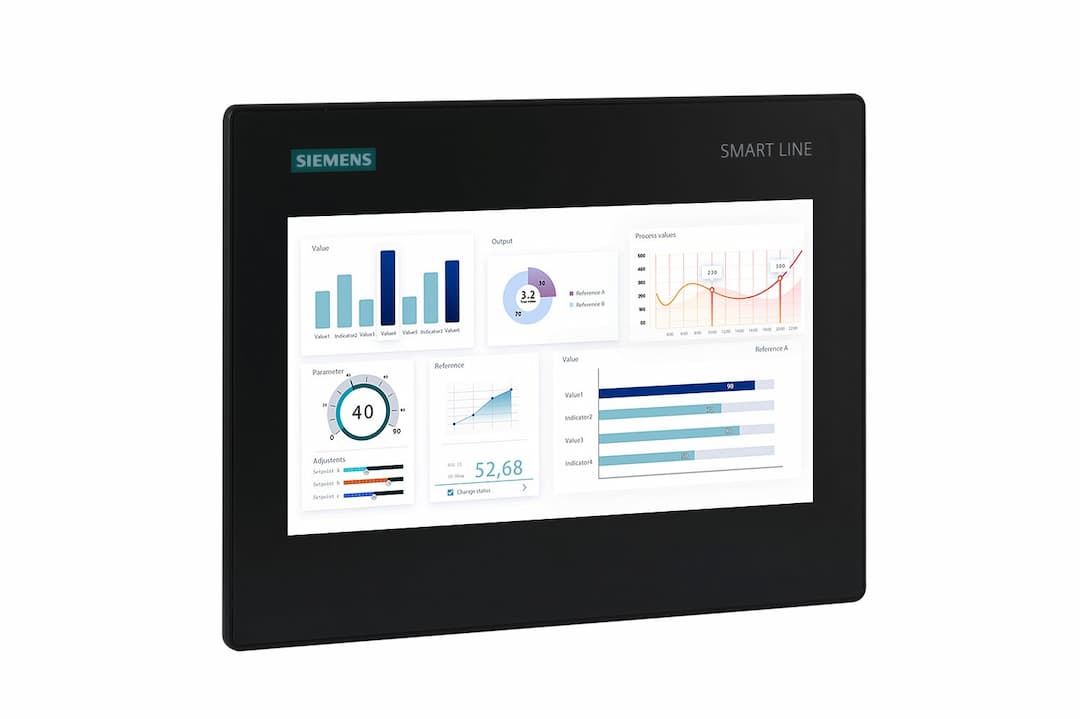

6AV6648-0DC11-3AX0
Product ID:147501
Updated: 2026/4/3
Key Features
- 1Display vibrant visuals on a 7-inch widescreen TFT with 16 million colors. 2、Connect seamlessly via RS-422/485 and Ethernet RJ45 interfaces. 3、Prevent firmware tampering with integrated secure boot functionality. 4、Enhance operations with a real-time clock and USB host port. 5、Configure easily using WinCC Flexible SMART V4 engineering software.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cut-out Dimensions | 192*138 | Dimensions | 209*155 |
| Color Quantity/Gray Scale | 16M | Operating Voltage | 24V |
| Vector Graphics Support | Yes | User Script Support | No |
| Internal Variables | 800 | Pattern Type | Curves/Tables |
| Communication Interface | Ethernet port + Serial port | Number of USB Interfaces | 1 |
| SD Card Slot | No | Memory System | 256MB |
| Operation Method | Touch | Resolution | 800*480 |
| Display Size (inches) | 7" | HMI Model | Smart 700 IE V4 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | EAR99H | AL | N |
| Model Number | 6AV6648-0DC11-3AX0 |
Specifications may be subject to change without notice
