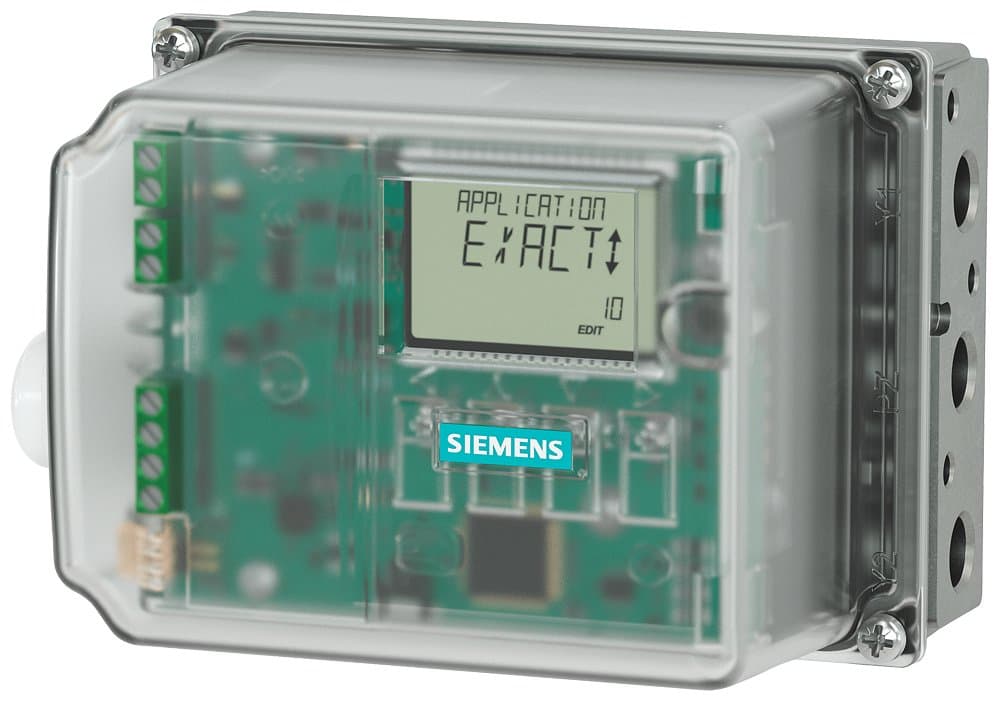

6DR7101-1AN01-1AA0
Product ID:124580
Updated: 2026/7/2
Key Features
- 1Automate control valves with a precise 4-20 mA input signal.
- 2Operate with single and double-acting linear or part-turn actuators.
- 3Commission in seconds at the push of a button, no expertise needed.
- 4Monitor easily through the polycarbonate lid with viewing window.
- 5Connect flexibly using M20 or pneumatic thread cable entries.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Ambient Temperature | -20 ... +80 °C | Electrical Connection (Second) | M20 x 1.5/Plastic Cable Gland |
| Electrical Connection (First) | M20 x 1.5/Plastic Cable Gland | Air Supply Port | G¼ |
| 4-20mA Position Feedback | No 4-20mA Position Feedback | Communication Method | HART Communication |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Transparent Polycarbonate Cover |
| Actuator Type | Single Acting | Product Series | SIPART PS100 |
| Lifecycle | P.M300 | Country of Origin | Germany |
| ECCN | EAR99H | AL | N |
| Model Number | 6DR7101-1AN01-1AA0 |
Specifications may be subject to change without notice
