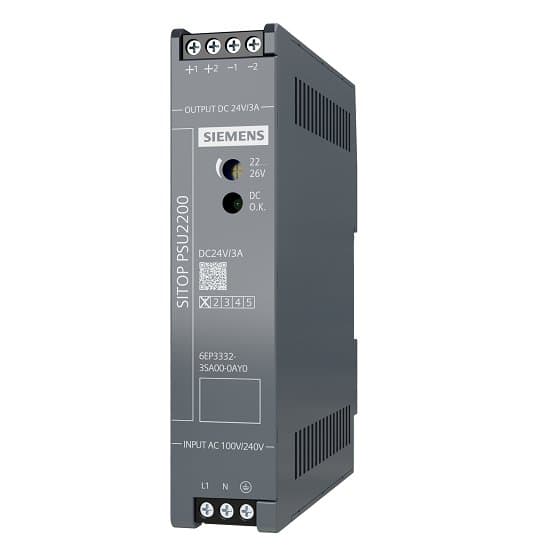

6EP3332-3SA00-0AY0
Product ID:184143
Updated: 2026/8/13
Key Features
- 1Power a wide 85-264V AC input range for global use.
- 2Achieve up to 90% efficiency to reduce operating costs.
- 3Protect your system with overvoltage and short-circuit safeguards.
- 4Adjust output voltage from 22.2V to 26.4V for flexibility.
- 5Integrate easily with a compact 54x53x90mm DIN rail design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 0.22kg | Depth | 102mm |
| Height | 123.6mm | Width | 27mm |
| PCB Conformal Coating | Yes | Cold Start Temperature | -30℃ |
| Operating Temperature | -20~+70℃ | Protection Rating | IP20 |
| Output Power | 72W | Input Voltage Range | AC 85~264V |
| Power Phases | Single-phase AC input DC output | Output Current | 3A |
| Adjustable Output Voltage Range | DC21.6~26V | Output Voltage | DC 24V |
| Input Voltage | AC 85~264V | Lifecycle | P.M280 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6EP3332-3SA00-0AY0 |
Specifications may be subject to change without notice
