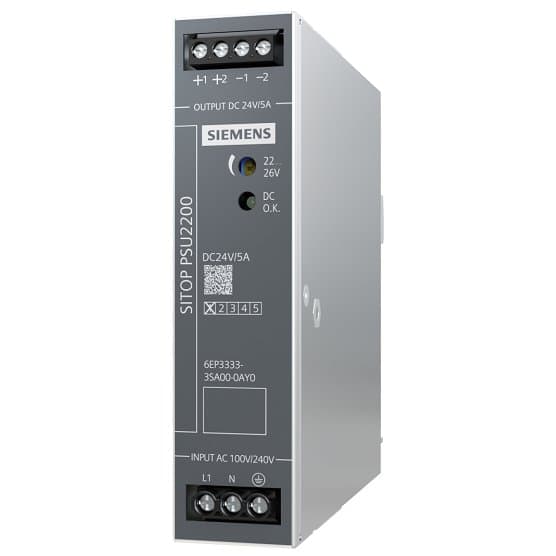

6EP3333-3SA00-0AY0
Product ID:195120
Updated: 2026/4/3
Key Features
- 1Ensure minimal energy loss for maximum system performance. 2、Mount easily on DIN-rails in space-constrained environments. 3、Deliver a stable 24 V DC output at 5 A consistently. 4、Accept 100-240 V AC input for versatile global applications. 5、Meet RoHS and WEEE directives for environmental compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 0.45kg | Depth | 117.2mm |
| Height | 123.6mm | Width | 30mm |
| PCB Conformal Coating | Yes | Cold Start Temperature | -40℃ |
| Operating Temperature | -30~+70℃ | Protection Rating | IP20 |
| Output Power | 120W | Input Voltage Range | AC 85~264V |
| Power Supply Phases | Single-phase AC input DC output | Output Current | 5A |
| Adjustable Output Voltage Range | DC21.6~26.4V | Output Voltage | DC 24V |
| Input Voltage | AC 85~264V | Lifecycle | P.M280 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6EP3333-3SA00-0AY0 |
Specifications may be subject to change without notice
