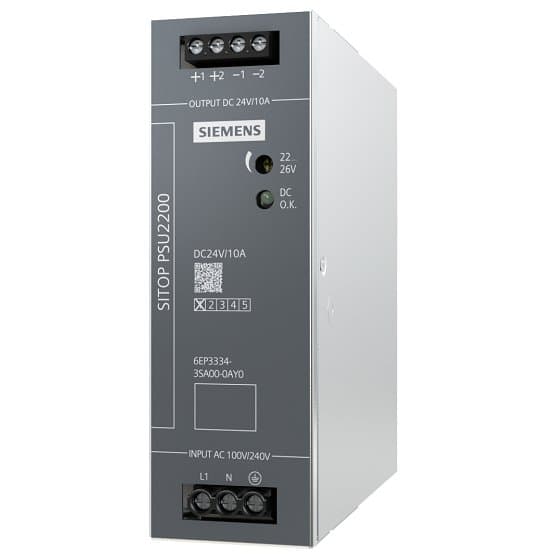

6EP3334-3SA00-0AY0
Product ID:206831
Updated: 2026/4/3
Key Features
- 1Deliver stabilized 24V DC/10A output for reliable operation. 2、Accept a wide 90-264V AC input for versatile global use. 3、Install easily with a compact and space-saving design. 4、Protect against harsh conditions with conformal coating. 5、Reduce total cost with a durable and efficient solution.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 0.62kg | Depth | 117.2mm |
| Height | 123.6mm | Width | 40mm |
| PCB Conformal Coating | Yes | Cold Start Temperature | -40℃ |
| Operating Temperature | -30~+70℃ | Protection Rating | IP20 |
| Output Power | 240W | Input Voltage Range | AC 90~264V |
| Power Phases | Single-phase AC input, DC output | Output Current | 10A |
| Adjustable Output Voltage Range | DC21.6~26.4V | Output Voltage | DC 24V |
| Input Voltage | AC 90~264V | Lifecycle | P.M280 |
| Country of Origin | China | ECCN | EAR99 |
| AL | N | Model Number | 6EP3334-3SA00-0AY0 |
Specifications may be subject to change without notice
