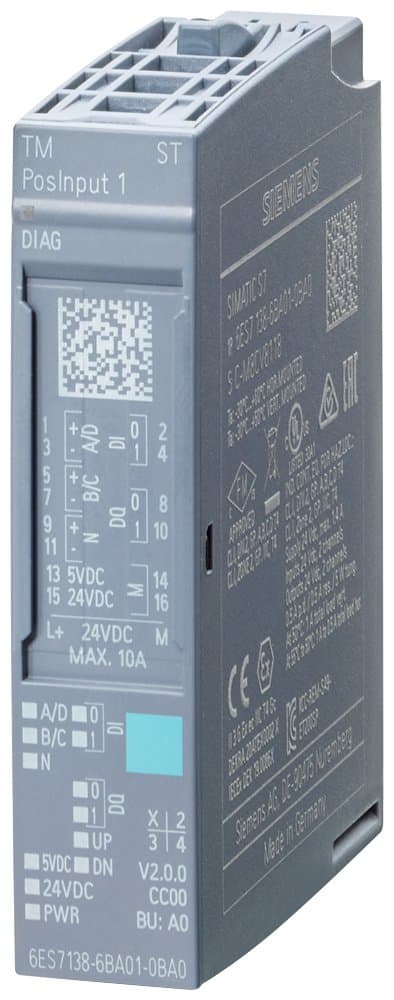

6ES7138-6BA01-0BA0
Product ID:123298
Updated: 2026/4/3
Key Features
- 1Achieve precise position input for accurate industrial automation. 2、Support RS-422 incremental and SSI absolute encoders. 3、Utilize 2 digital inputs and 2 digital outputs for control. 4、Enable high-speed counting up to 4 MHz with evaluation. 5、Integrate easily using STEP 7 TIA Portal V16+.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Packaging Quantity | 1 | Quantity Unit | 1 Piece |
| Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
| Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
| Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
| Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
| Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
