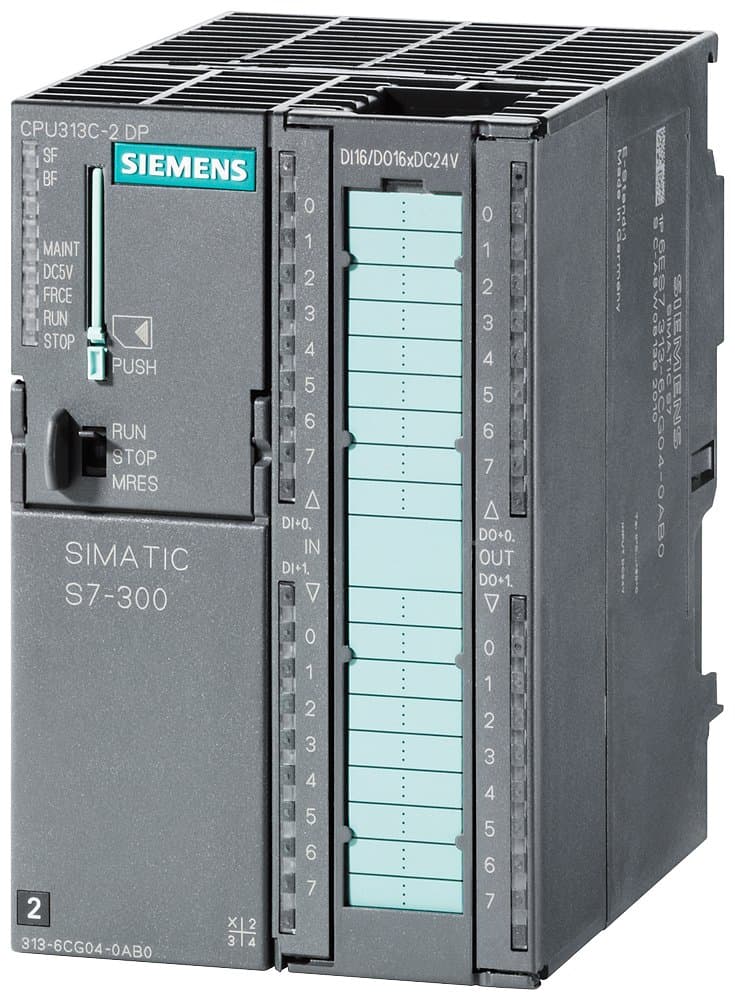

6ES7313-6CG04-4AB1
Product ID:217618
Updated: 2026/4/3
Key Features
- 1Integrate power supply and front connector for a compact design. 2、Utilize high-speed counters up to 30 kHz for precise motion control. 3、Connect seamlessly via the integrated MPI/DP communication interface. 4、Access 128 KB work memory and expandable load memory via MMC. 5、Program easily with compatibility for STEP 7 software.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 130mm | Height | 125mm |
| Width | 80mm | Number of PROFINET Interfaces | 0 |
| Processor Speed (1K, binary operation) | 0.07ms | Memory Capacity | 128kByte |
| Number of Analog Outputs | 0 | Number of Analog Inputs | 0 |
| Number of Digital Outputs | 16 | Number of Digital Inputs | 16 |
| Operating Voltage | 24V DC | Model | CPU313C-2DP Screw Component |
| Type | Compact | Product Type | CPU |
| Lifecycle | P.M300 | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6ES7313-6CG04-4AB1 |
Specifications may be subject to change without notice
