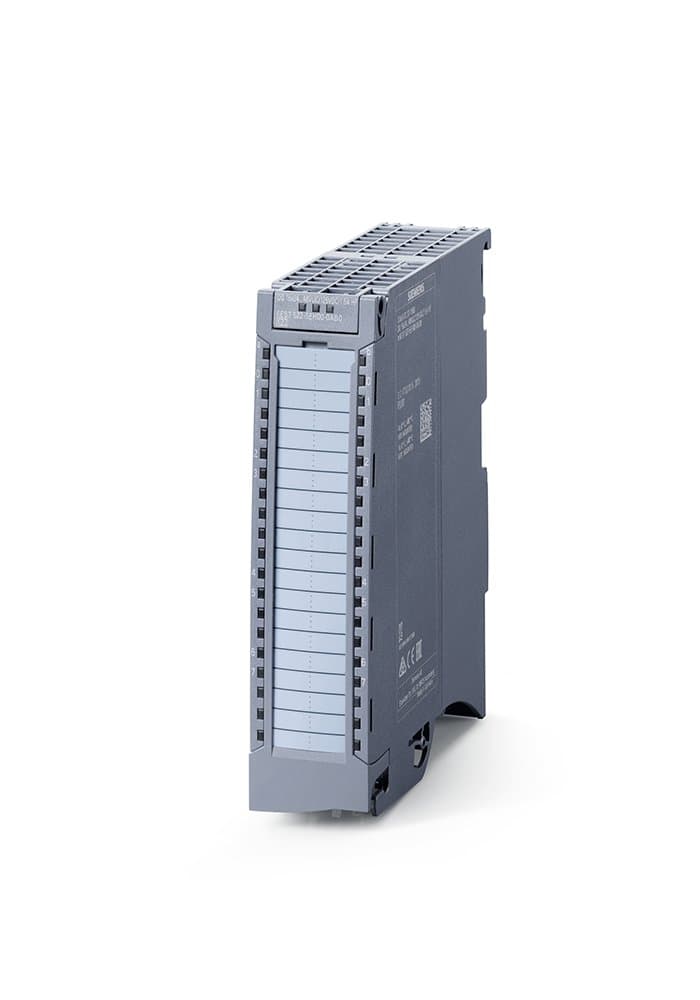

6ES7522-5EH00-0AB0
Product ID:105444
Updated: 2026/4/3
Key Features
- 1Deliver reliable control with 16 electrically isolated digital outputs. 2、Drive diverse loads with each channel supporting up to 0.5A. 3、Achieve safety compliance with SIL2 and PL d safety shutdown. 4、Simplify setup using STEP 7 TIA Portal from V13 SP1. 5、Connect flexibly with 24V DC, 48V UC, and 125V DC compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Packaging Quantity | 1 | Quantity Unit | 1 Piece |
| Package size unit of measure | MM | Packaging Dimension | 150,00 x 200,00 x 30,00 |
| Net Weight (kg) | 0,037 Kg | Estimated dispatch time (Working Days) | 20 Day/Days |
| Export Control Regulations | AL : N / ECCN : N | Notes | Please enter text for every Y option (using the Configurator). |
| Product Lifecycle (PLM) | PM300:Active Product | Product family | Actuators and indicators, 22 mm, round, plastic, black |
| Product Description | Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal, with laser labeling, inscription or symbol Customer-specific selection with SIRIUS ACT configurator (CIN) | Article Number (Market Facing Number) | 3SU1106-6AA20-1AA0-Z Y19 |
Specifications may be subject to change without notice
