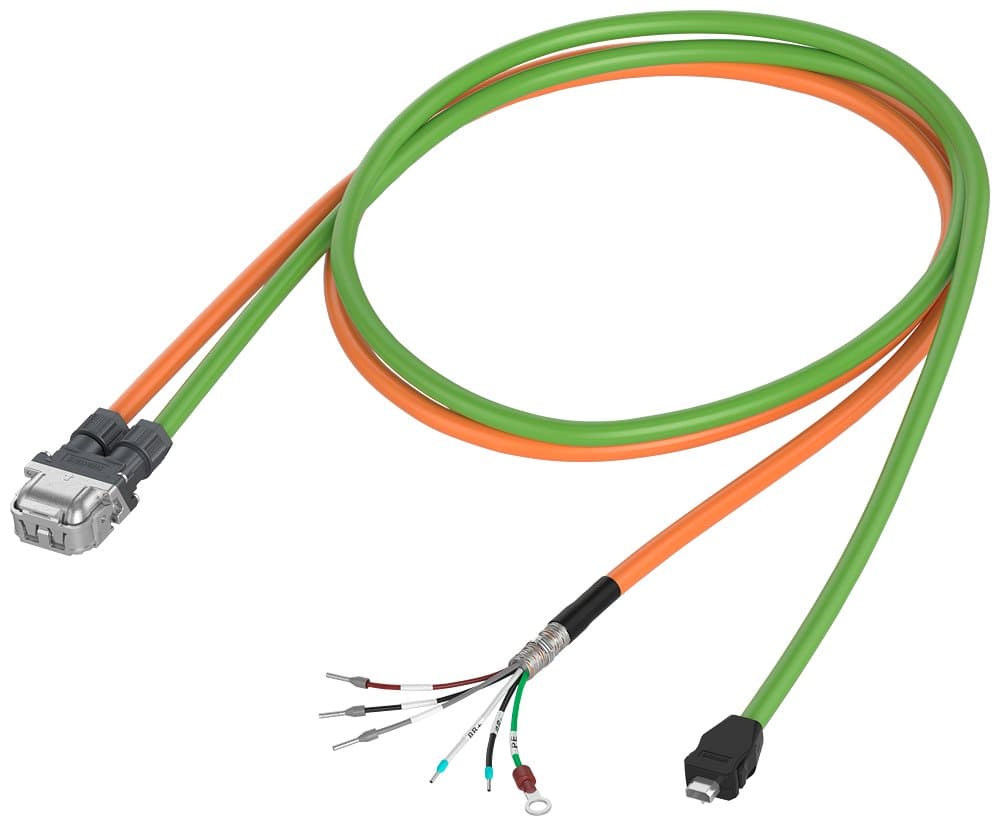

6FX3802-7DD01-1AD0
Product ID:223102
Updated: 2026/6/17
Key Features
- 1Ensure reliable performance with a pre-assembled dual cable for S-1FL2 SH20/30/40 motors.
- 2Achieve secure connections using the MOTION-CONNECT 380 compatible design.
- 3Endure high dynamic stress with a rating of up to 5 million bending cycles.
- 4Optimize system integration with full SINAMICS S200 servo drive compatibility.
- 5Reduce maintenance costs and downtime through robust, long-lasting construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cross Section | 4x0.75+2x0.38/3x2x0.25 | Cable Length | 3m |
| Bending Cycles (m indicates million) | 500m | Exit Direction (Valid only for motors with shaft height 20/30/40) | Shaft end exit |
| With Brake | With brake control | Flexibility | Flexible |
| Motor Shaft Height | SH20/30/40 | Cable Type | Single connector dual cable |
| Lifecycle | P.M300 | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6FX3802-7DD01-1AD0 |
Specifications may be subject to change without notice
