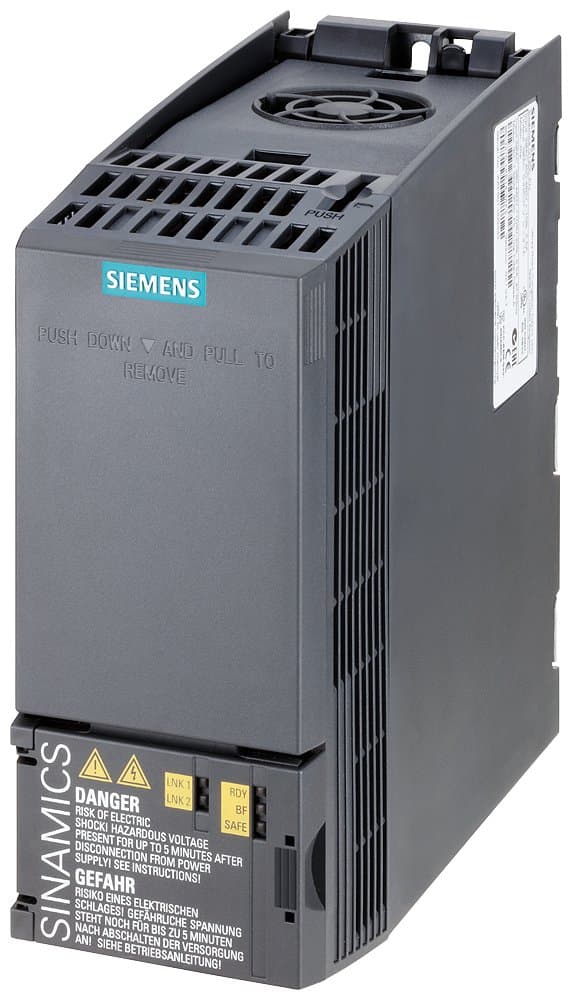

6SL3210-1KE15-8AB2
Product ID:100542
Updated: 2026/4/3
Key Features
- 1Deliver reliable 2.2kW power with 3AC 380-480V input. 2、Achieve 150% overload capability for 3 seconds to handle peak demands. 3、Extend coverage with optional 3-year "Service Protect" for reduced downtime. 4、Comply with REACH Article 33 and other key industrial regulations. 5、Integrate easily using USS/MODBUS RTU protocols and built-in filters.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 155mm | Height | 173mm |
| Width | 73mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSAA | Number of Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 2.2kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-1KE15-8AB2 |
Specifications may be subject to change without notice
