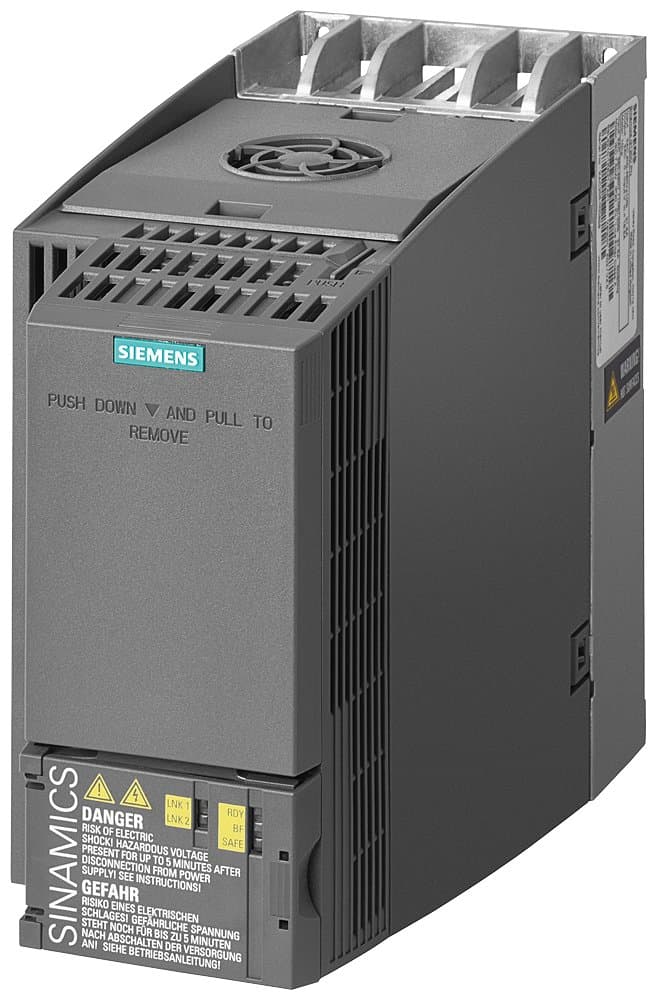

6SL3210-1KE21-3AB1
Product ID:220262
Updated: 2026/4/3
Key Features
- 1Deliver 5.5 kW rated power with 150% overload for 3 seconds. 2、Operate on 3AC 380-480V with a wide 47-63Hz frequency range. 3、Integrate a Class A filter for enhanced performance and reliability. 4、Support Safe Torque Off (STO) and PROFIsafe safety protocols. 5、Feature a compact FSB design with versatile I/O interfaces.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 203mm | Height | 196mm |
| Width | 100mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSB | Number of Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 5.5kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-1KE21-3AB1 |
Specifications may be subject to change without notice
