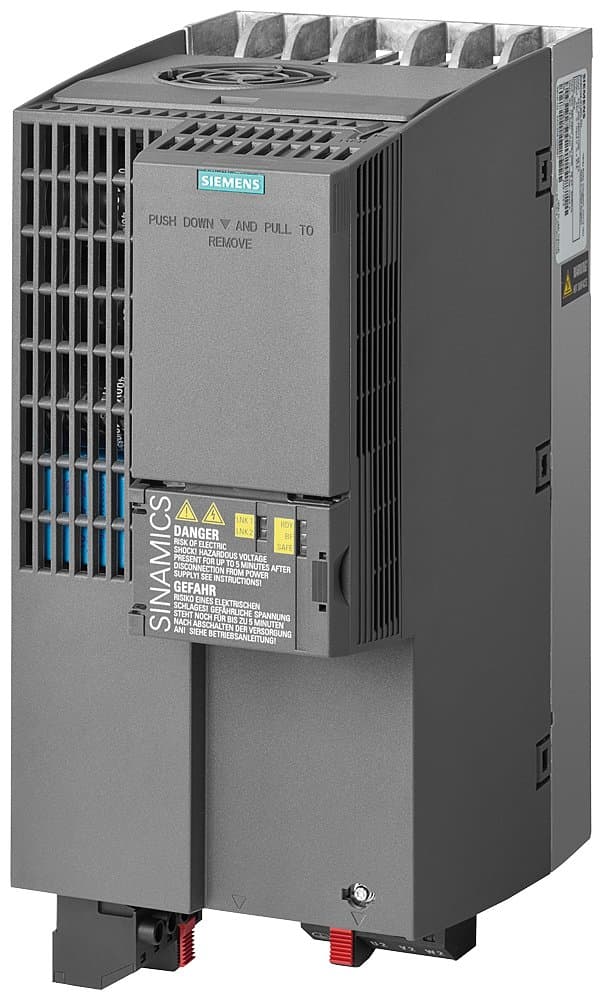

6SL3210-1KE22-6UB1
Product ID:226182
Updated: 2026/4/3
Key Features
- 1Deliver 11 kW rated power with 150% overload for 3 seconds. 2、Integrate Safe Torque Off (STO) for enhanced safety compliance. 3、Support multiple fieldbus systems like MODBUS RTU and PROFIBUS. 4、Save space with compact dimensions of 295x140x203 mm. 5、Simplify commissioning via USB or Operator Panels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 203mm | Height | 295mm |
| Width | 140mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSB | Input Phases | 3 |
| Filter | No Built-in Class A Filter | Motor Power Compatibility | 11.0kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-1KE22-6UB1 |
Specifications may be subject to change without notice
