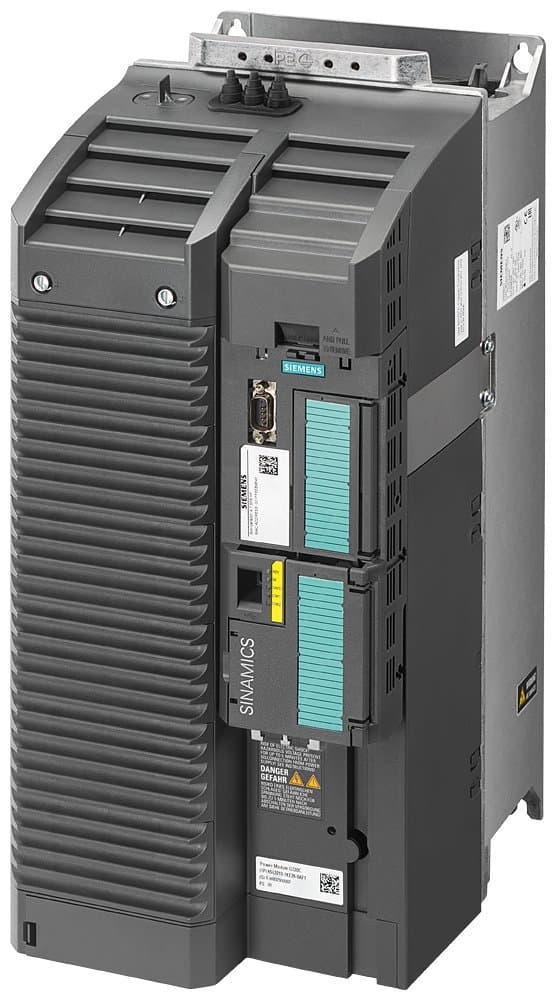

6SL3210-1KE28-4AF1
Product ID:98495
Updated: 2026/4/2
Key Features
- 1Utilize precise energy-optimized vector control for enhanced efficiency. 2、Cover a wide performance range from 0.55 to 132 kW. 3、Integrate seamlessly via PROFINET-PN and PROFIsafe protocols. 4、Power diverse applications like conveyors, pumps, and fans. 5、Ensure safe operation with integrated safety functions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 472mm |
| Width | 200mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSD | Input Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 45.0kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | 9I999KP |
| Model Number | 6SL3210-1KE28-4AF1 |
Specifications may be subject to change without notice
