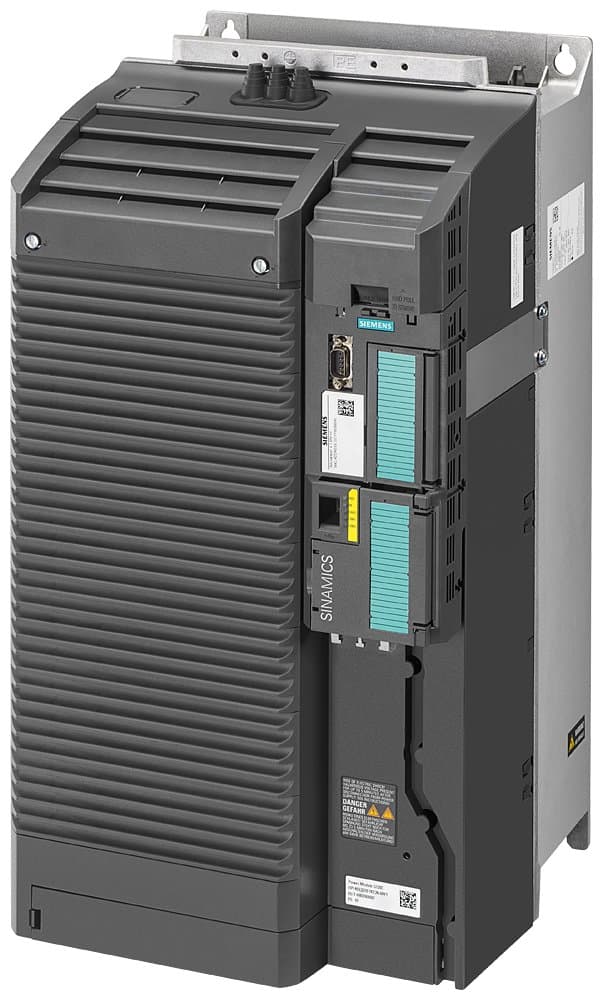

6SL3210-1KE31-1AB1
Product ID:217520
Updated: 2026/4/4
Key Features
- 1Deliver 55 kW rated power with 150% overload capability for 3 seconds. 2、Operate across a wide 380-480V AC range with ±10% voltage tolerance. 3、Integrate Class A EMC filter for reliable and compliant performance. 4、Access advanced I/O including 6 DI, 2 DO, 1 AI, and 1 AO. 5、Connect seamlessly via integrated PROFINET fieldbus communication.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 551mm |
| Width | 275mm | Analog Outputs | 1 |
| Analog Inputs | 1 | Digital Outputs | 2 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSE | Input Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 55.0kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | EAR99H | AL | N |
| Model Number | 6SL3210-1KE31-1AB1 |
Specifications may be subject to change without notice
