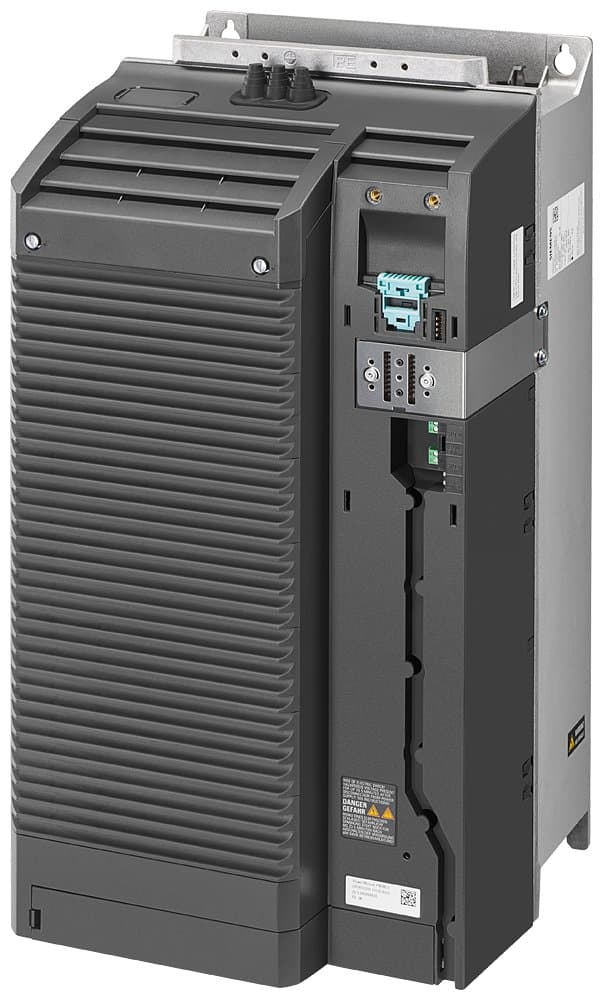

6SL3210-1PE28-8AL0
Product ID:130044
Updated: 2026/4/5
Key Features
- 1Handle 200% overload for 3 seconds for demanding starts. 2、Reduce power losses with the built-in Class A line filter. 3、Protect your motor with comprehensive fault and temperature monitoring. 4、Operate reliably in ambient temperatures from -20°C to +50°C. 5、Fit into panels with compact dimensions of 275x551x237 mm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 551mm |
| Width | 275mm | Protection Rating | IP20 |
| Size | FSE | Input Phases | 3 |
| Filter | Integrated Class A Filter | Motor Power | 45kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 9N9999 | AL | N |
| Model Number | 6SL3210-1PE28-8AL0 |
Specifications may be subject to change without notice
