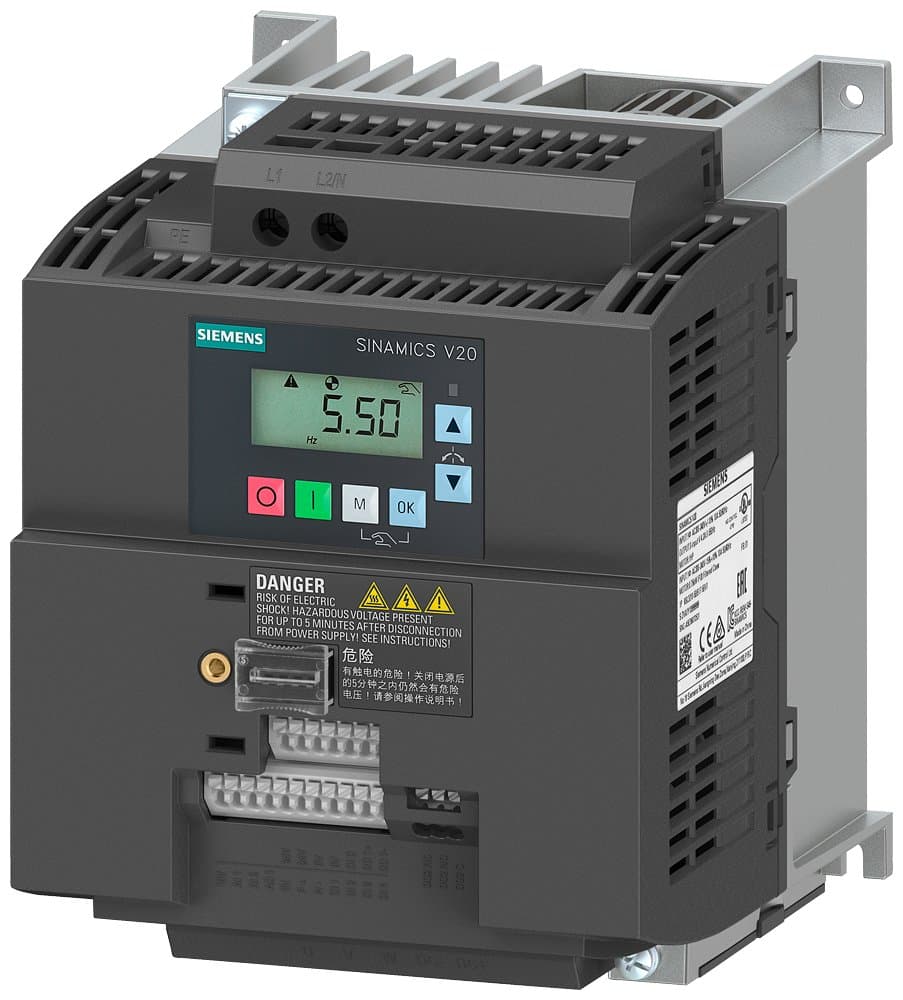

6SL3210-5BB23-0UV1
Product ID:111414
Updated: 2026/4/4
Key Features
- 1Deliver 3kW power with 150% overload for 60 seconds. 2、Configure with 4 DI, 2 DQ, 2 AI, and 1 AO inputs. 3、Communicate via USS and Modbus RTU with built-in BOP. 4、Install in compact AD 136x176.5x160 mm dimensions. 5、Ensure durability with IP20/UL open type protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 158.8mm | Height | 176.5mm |
| Width | 136.6mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Dimensions | FSAD | Output Phases | 3 |
| Input Phases | 1 | Power Phases | 1AC |
| Filter | No built-in filter | Motor Power | 3kW |
| Rated Voltage | 200-240V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3210-5BB23-0UV1 |
Specifications may be subject to change without notice
