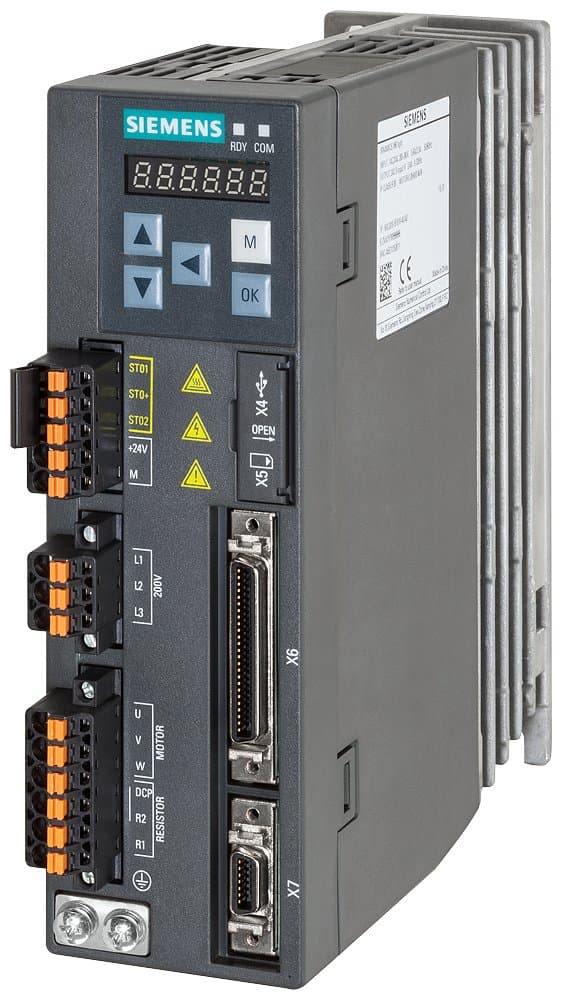

6SL3210-5FB10-4UA1
Product ID:112933
Updated: 2026/4/4
Key Features
- 1Handle wide-ranging motion control tasks with high precision and speed. 2、Operate on 1/3-phase 200-240V AC input with -15% to +10% tolerance. 3、Deliver 0.4 kW motor power for versatile industrial applications. 4、Integrate seamlessly with a compact 55x170x170 mm IP20 protected design. 5、Ensure continuous operation with 2.6A output and 0-330 Hz frequency range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 170mm | Height | 170mm |
| Width | 55mm | Digital Outputs | 6 |
| Digital Inputs | 10 | Protection Rating | IP20 |
| Size | FSB | Input Phases | 1 |
| Filter | No Built-in Filter | Rated Output Current | 2.6A |
| Motor Power | 0.4KW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB10-4UA1 |
Specifications may be subject to change without notice
