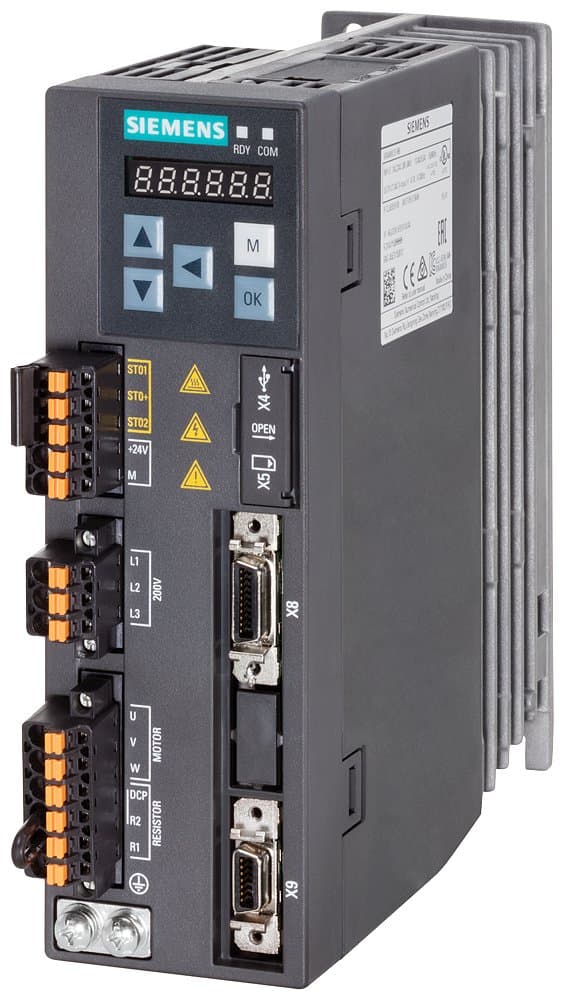

6SL3210-5FB10-4UF1
Product ID:112685
Updated: 2026/4/4
Key Features
- 1Achieve high precision control with integrated position feedback. 2、Operate safely across a wide 0°C to +45°C temperature range. 3、Save panel space with compact 55x170x170mm dimensions. 4、Enhance safety with touch-proof IP20 enclosure rating. 5、Integrate seamlessly into robotics and inline manufacturing.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 170mm | Height | 170mm |
| Width | 55mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSB | Input Phases | 1 |
| Filter | No built-in filter | Rated Output Current | 2.6A |
| Motor Power | 0.4kW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB10-4UF1 |
Specifications may be subject to change without notice
