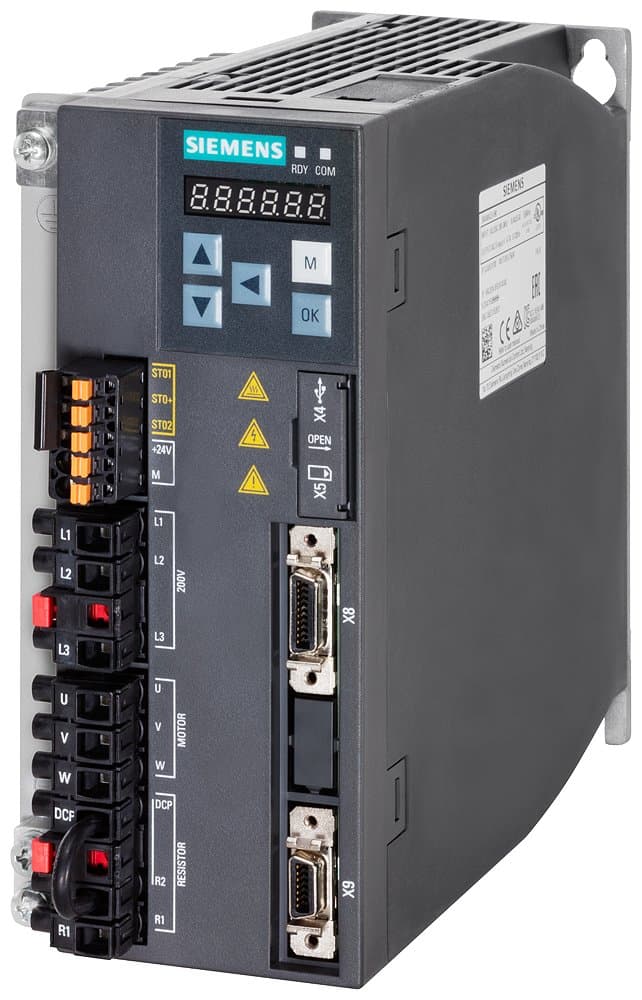

6SL3210-5FB10-8UF0
Product ID:188234
Updated: 2026/4/6
Key Features
- 1Control motors precisely for high accuracy and reliability. 2、Integrate seamlessly via PROFINET industrial communication. 3、Operate flexibly with 200-240V 1/3-phase AC input. 4、Deliver robust 0.75 kW power for demanding tasks. 5、Ensure safe operation with IP20 protection rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 195mm | Height | 170mm |
| Width | 80mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSC | Input Phases | 1 |
| Filter | No Built-in Filter | Rated Output Current | 4.7A |
| Motor Power | 0.75kW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB10-8UF0 |
Specifications may be subject to change without notice
