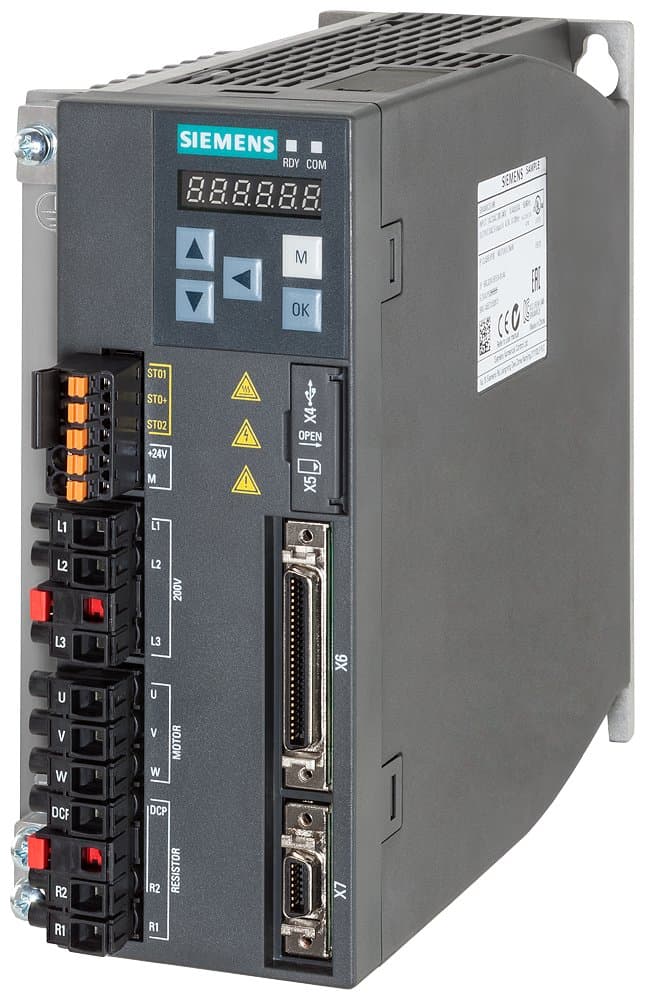

6SL3210-5FB11-0UA1
Product ID:217526
Updated: 2026/4/4
Key Features
- 1Support a robust 200-240 V 3-phase input voltage range with -15%/+10% tolerance. 2、Deliver versatile 0–Input voltage output at 0-330 Hz frequency. 3、Control 1 kW motors with high precision for optimal performance. 4、Access comprehensive warranty options including a 2-year coverage plan. 5、Utilize advanced diagnostic tools for functional testing and reliable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 195mm | Height | 170mm |
| Width | 95mm | Digital Outputs | 6 |
| Digital Inputs | 10 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | No Built-in Filter | Rated Output Current | 6.3A |
| Motor Power | 1KW | Rated Voltage | 200-240V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FB11-0UA1 |
Specifications may be subject to change without notice
