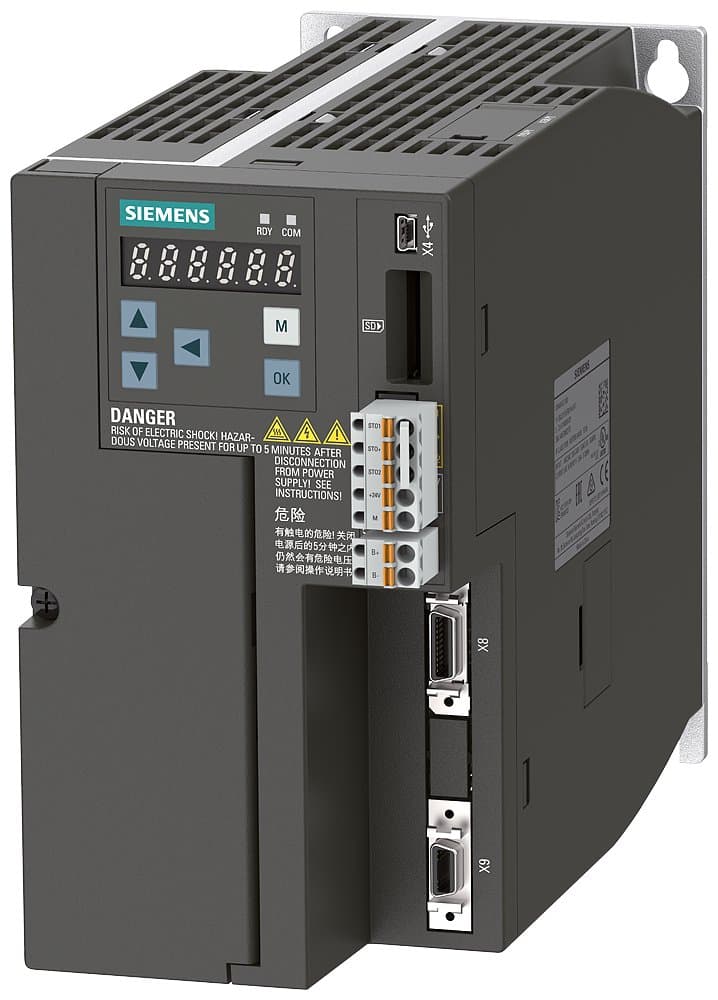

6SL3210-5FE11-5UF0
Product ID:125507
Updated: 2026/4/5
Key Features
- 1Deliver high-performance drive control for demanding industrial applications. 2、Integrate seamlessly via built-in PROFINET connectivity for efficient communication. 3、Support a versatile 380-480V 3AC input power range for motor flexibility. 4、Ensure robust operation in harsh conditions with a durable IP20/UL Open Type design. 5、Enhance safety with advanced features like STO (Safe Torque Off).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 220mm | Height | 180mm |
| Width | 100mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSB | Input Phases | 3 |
| Filter | No built-in filter | Rated Output Current | 5.3A |
| Motor Power | 1.5kW | Rated Voltage | 380-480V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FE11-5UF0 |
Specifications may be subject to change without notice
