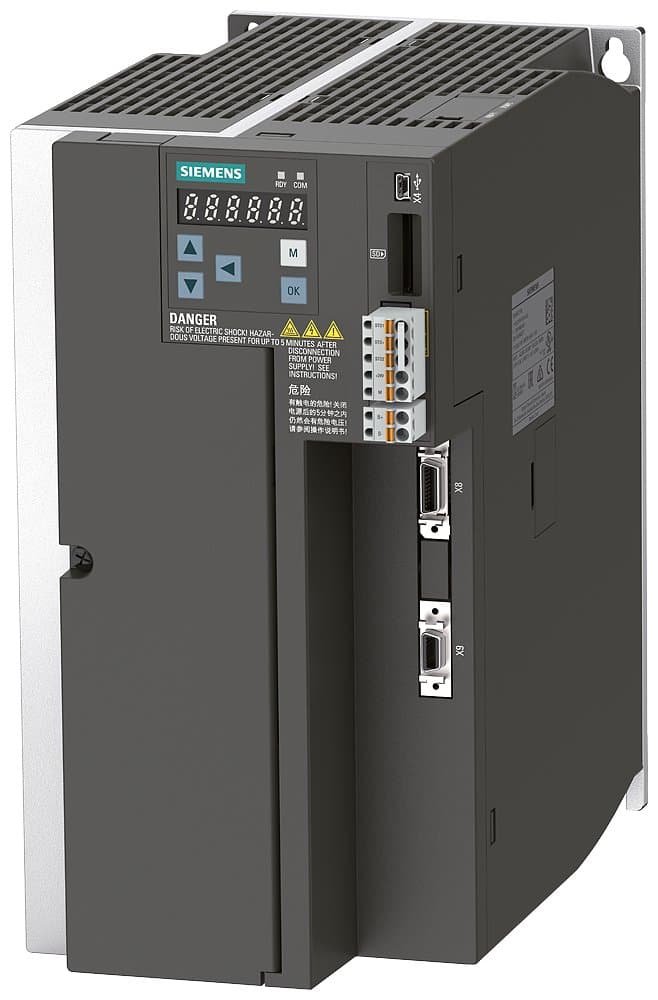

6SL3210-5FE13-5UF0
Product ID:185873
Updated: 2026/4/7
Key Features
- 1Maximize efficiency with a 3.5 kW high-performance servo drive. 2、Integrate seamlessly using built-in PROFINET communication. 3、Operate reliably across a wide 380-480V 3 AC input range. 4、Ensure durability with a robust IP20 protected enclosure design. 5、Reduce energy costs by pairing with efficient motor systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 240mm | Height | 260mm |
| Width | 140mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Rating | IP20 |
| Size | FSC | Input Phases | 3 |
| Filter | No built-in filter | Rated Output Current | 11A |
| Motor Power | 3.5kW | Rated Voltage | 380-480V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3210-5FE13-5UF0 |
Specifications may be subject to change without notice
