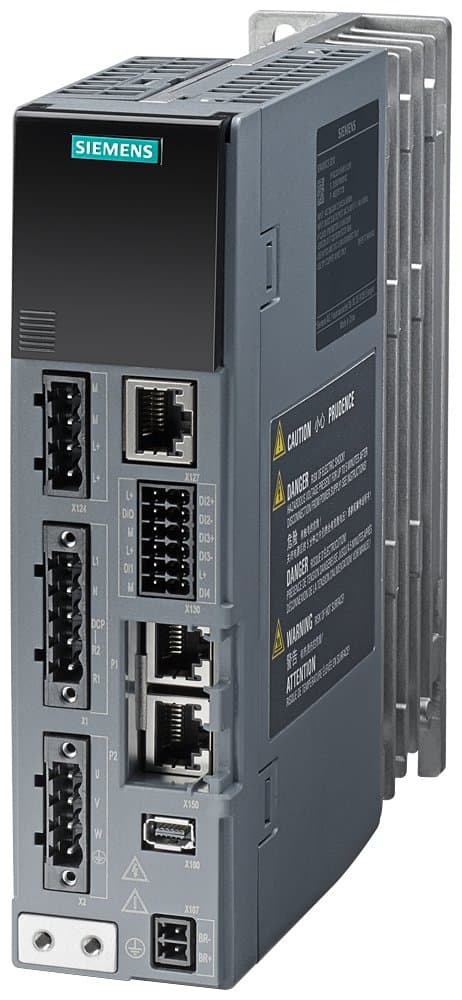

6SL3210-5HB10-1UF0
Product ID:119255
Updated: 2026/4/5
Key Features
- 1Drive demanding applications with high precision and dynamic response. 2、Operate flexibly on a 200-240V 1AC ±10% wide voltage range. 3、Integrate seamlessly via built-in PROFINET interface communication. 4、Optimize energy use and cut costs with variable-speed operation. 5、Simplify installation using compact One Cable Connection technology.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 172.4mm | Height | 170mm |
| Width | 45mm | Digital Outputs | 0 |
| Digital Inputs | 5 | Protection Rating | IP20 |
| Dimensions | FSA | Output Phases | 3 |
| Input Phases | 1 | Motor Power | 0.1kW |
| Rated Voltage | 200-240V | Product Type | Variable Frequency Drive |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 3A999A | AL | N |
| Model Number | 6SL3210-5HB10-1UF0 |
Specifications may be subject to change without notice
