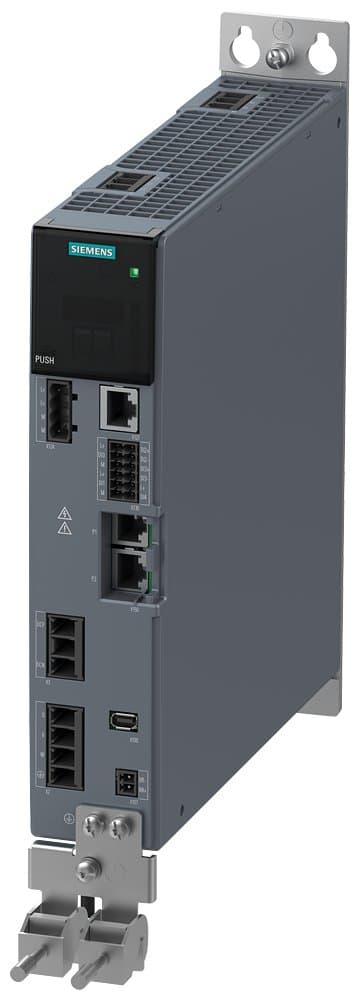

6SL3210-5HE10-8UF0
Product ID:101187
Updated: 2026/4/3
Key Features
- 1Implement advanced safety with STO, SBC, and Safe Stop functions. 2、Optimize braking with integrated resistor and thermal monitoring. 3、Achieve precise control via Dynamic Servo Control and torque limitation. 4、Simplify setup using One Button Tuning and inertia estimator. 5、Ensure compliance meeting CE, EAC, cULus, and SIL 2 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 223mm | Height | 273mm |
| Width | 50mm | Digital Outputs | 0 |
| Digital Inputs | 5 | Protection Rating | IP20 |
| Dimensions | FSA | Output Phases | 3 |
| Input Phases | 3 | Motor Power | 0.75KW |
| Rated Voltage | 200-480V | Product Type | Variable Frequency Drive |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | 9N9999 | AL | N |
| Model Number | 6SL3210-5HE10-8UF0 |
Specifications may be subject to change without notice
