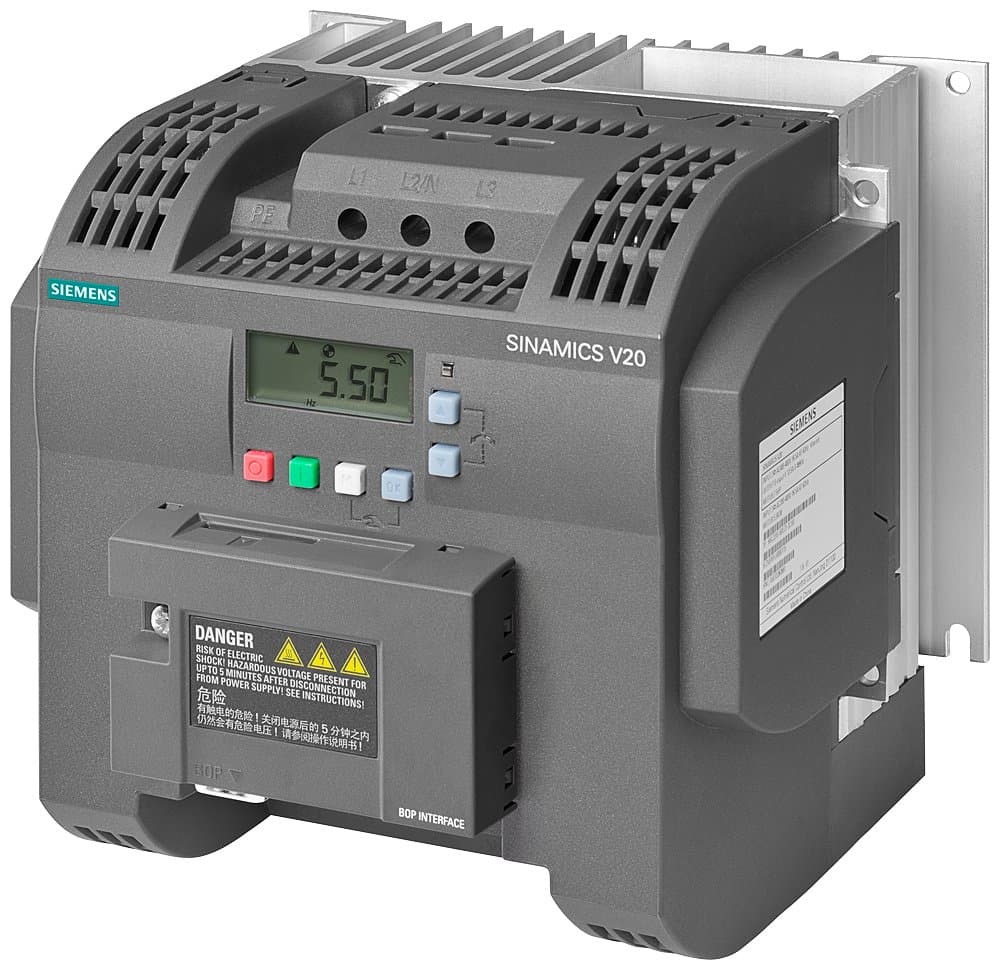

6SL3216-5BE17-5CV0
Product ID:222832
Updated: 2026/6/17
Key Features
- 1Deliver 0.75 kW power with 150% overload capability for 60 seconds.
- 2Integrate a C3 I/O interface with 4 DI, 2 DO, 2 AI, and 1 AO.
- 3Support USS and MODBUS RTU communication via a built-in BOP.
- 4Feature a compact IP20/UL open type A flat heat sink design.
- 5Comply with RoHS and WEEE directives for environmental safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 114.5mm | Height | 150mm |
| Width | 90mm | Digital Outputs | 2 |
| Digital Inputs | 4 | Protection Class | IP20 |
| Dimensions | FSA | Output Phases | 3 |
| Input Phases | 3 | Power Phases | 3AC |
| Filter | Filter C3 | Motor Power | 0.75kW |
| Rated Voltage | 380-480V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3216-5BE17-5CV0 |
Specifications may be subject to change without notice
