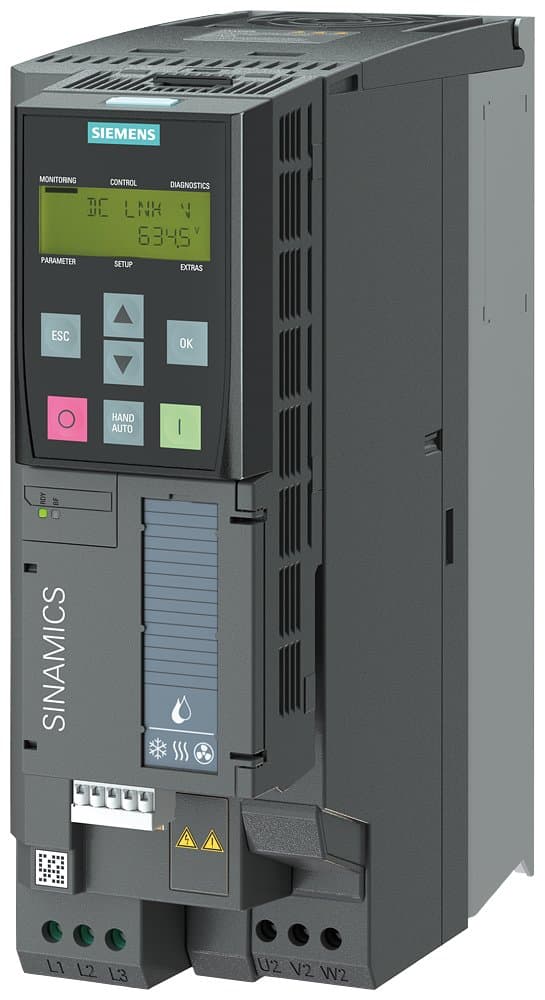

6SL3220-1YD24-0CB0
Product ID:107329
Updated: 2026/7/2
Key Features
- 1Deliver 7.5kW rated power from a robust 3AC 380-440V supply.
- 2Ensure 110% operational efficiency with automatic 60-second filter resets.
- 3Save panel space by eliminating the need for a separate operator interface.
- 4Integrate seamlessly using standard MODBUS RTU and BACnet MS/TP protocols.
- 5Meet strict safety standards with substances below all defined risk thresholds.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 209mm | Height | 275mm |
| Width | 100mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSB | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 7.5kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-1YD24-0CB0 |
Specifications may be subject to change without notice
