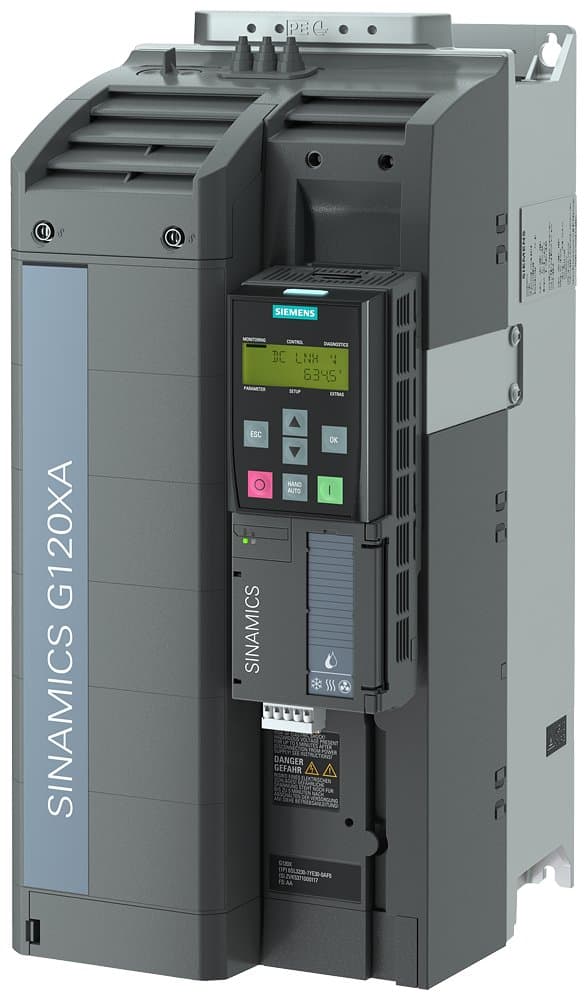

6SL3220-1YD34-0CB0
Product ID:102783
Updated: 2026/4/3
Key Features
- 1Deliver 30KW power for demanding fan and pump applications. 2、Ensure reliable performance with advanced C3 stage harmonic filtering. 3、Integrate seamlessly using Modbus, USS, and BACnet communication protocols. 4、Protect your investment with a durable IP20 protection class enclosure. 5、Support versatile applications in water treatment, HVAC, and paper making.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 472mm |
| Width | 200mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 30kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-1YD34-0CB0 |
Specifications may be subject to change without notice
