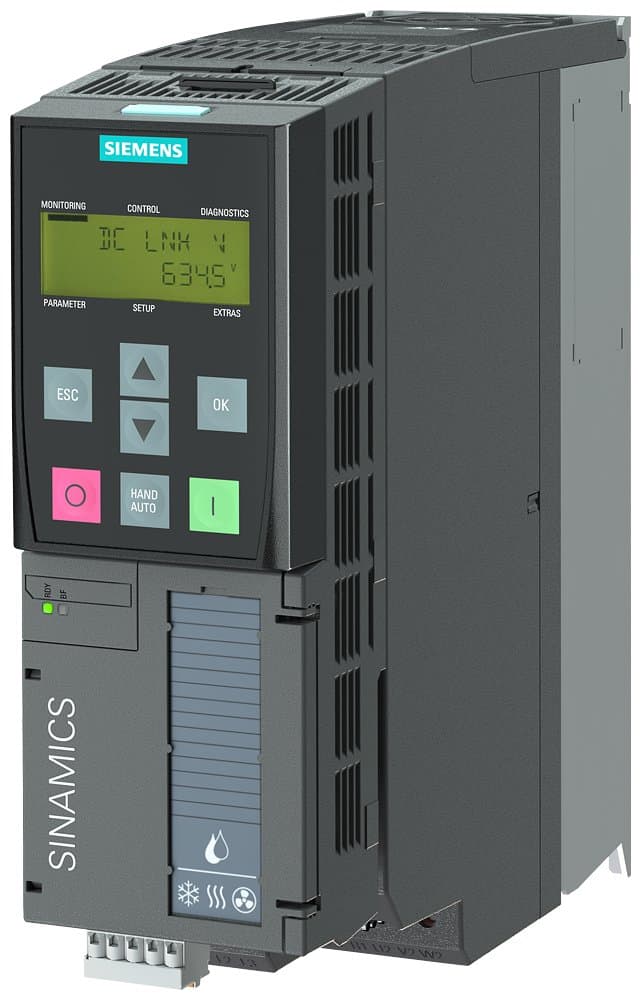

6SL3220-2YD18-0CB0
Product ID:222611
Updated: 2026/6/18
Key Features
- 1Achieve 97% operational efficiency with an integrated class A C3 filter.
- 2Ensure reliable 3 kW performance across a 380-440V voltage range.
- 3Control motors precisely using vector, sensorless vector, and V/f control modes.
- 4Enhance safety with an integrated Safe Torque Off (STO) function.
- 5Integrate seamlessly using MODBUS, BACnet MS/TP, and USS protocols.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 209mm | Height | 232mm |
| Width | 73mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSA | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 3kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-2YD18-0CB0 |
Specifications may be subject to change without notice
